ENERGIZE
ENERGIZE /PM5

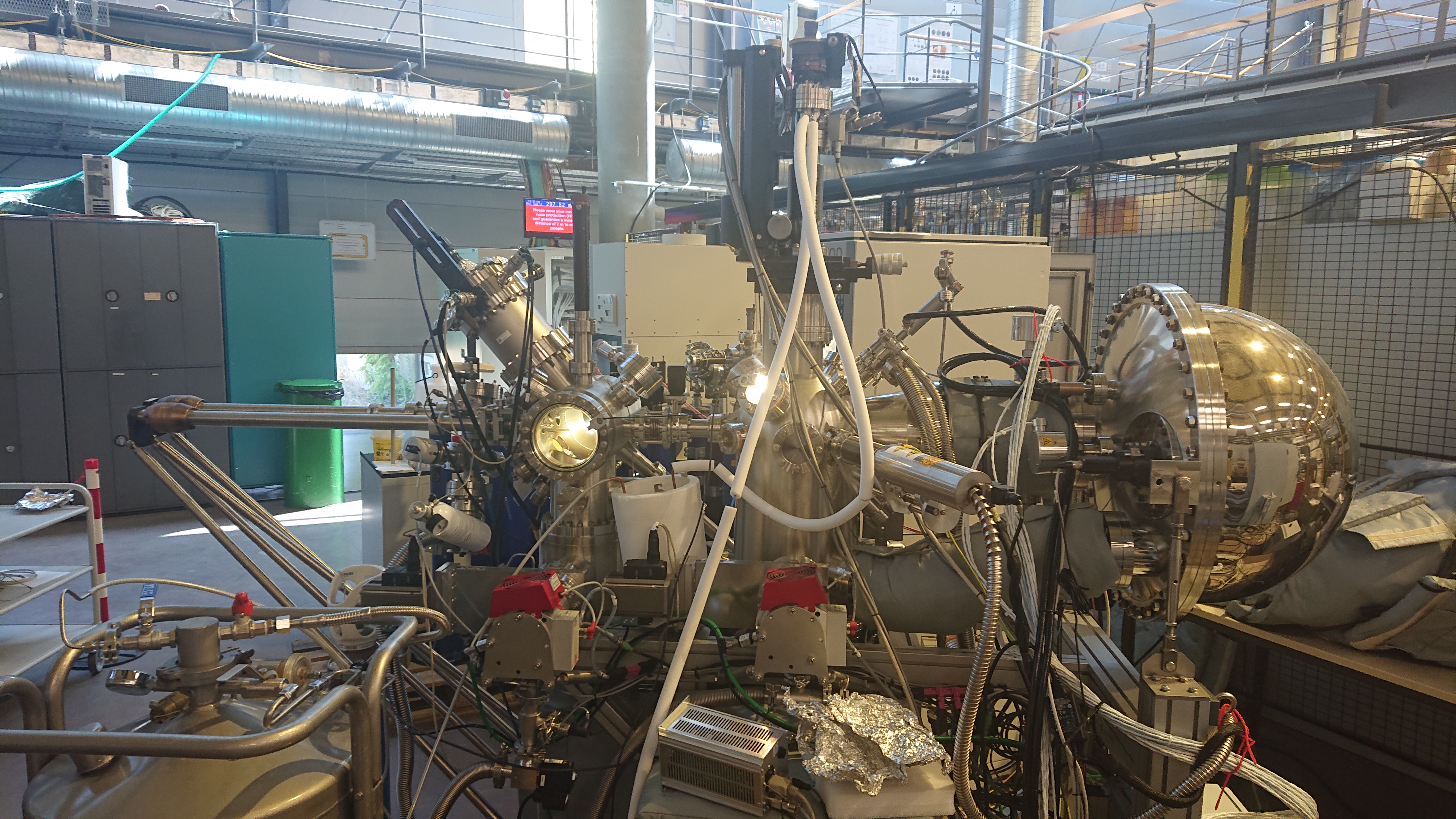

ENERGIZE is a collaboration between Helmholtz-Zentrum Berlin and the Humboldt Universität zu Berlin (HU). The aim of this project is to operate a beamline with a suitable end-station for materials science in the field of energy research. ENERGIZE is dedicated to research on hybrid materials and energy efficient technologies.
The dipole-PGM (plane grating mirror) beamline PM5 is optimized for the 20 eV to 1.5 keV energy range, which is ideally suited to perform ultraviolet photoelectron spectroscopy (UPS), X-ray photoelectron spectroscopy (XPS) and X-ray absorption spectroscopy (XAS) measurements. In addition, an attenuator system is installed, to allow measurements on radiation sensitive samples (<5 pA/cm² sample current).
Selected Applications:- Fundamental research into the electronic structure of new materials such as perovskite and 2D semiconductors
- Optimization of interfaces in light emitting diodes, solar cells and photoelectrochemical elements for the production of storable fuels
- Optimization of interfaces of opto-electronic components printed in air
Methods
ARPES, UPS, XPS, LEED, EXAFS, NEXAFS
Remote access
not possible
| Instrument data | |
|---|---|
| Phone (~49 30 8062-) | 12155 |
| Beam availability | 24h/d |

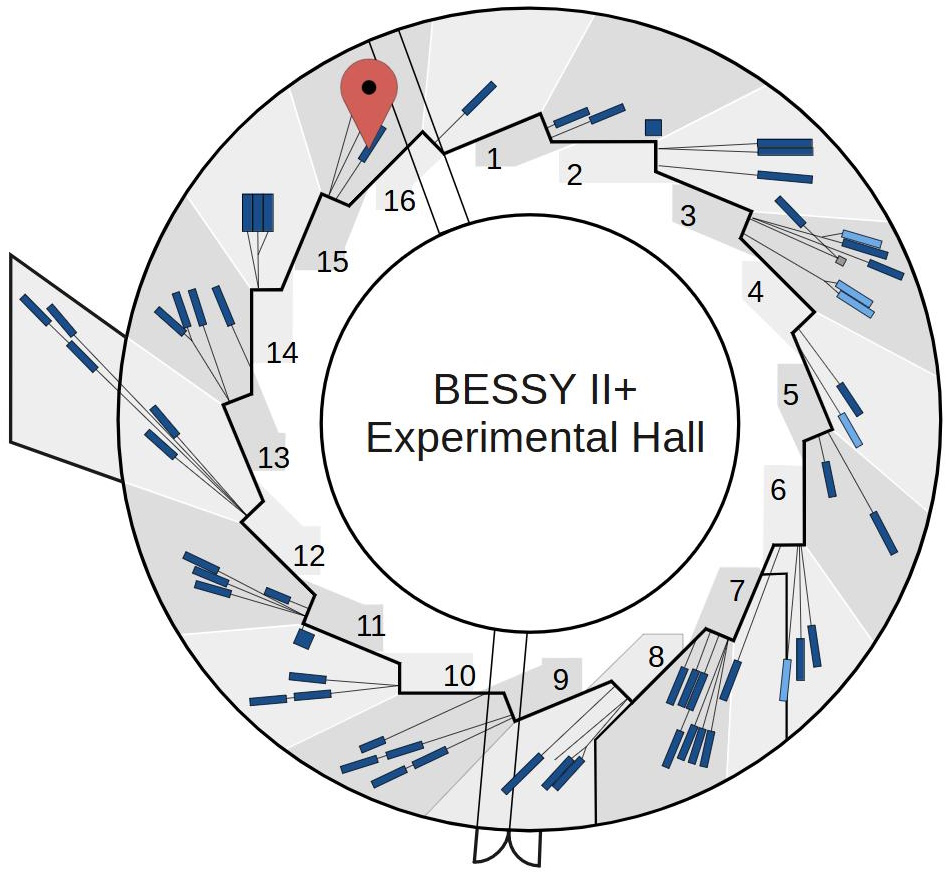

| Source | Dipole 15.1 |
| Monochromator | PGM |
| Energy range (at experiment) | 20-1700 eV |
| Energy resolution | E/ΔE=2888@500 eV (calculated) |
| Flux | ~7·109@500 photons/s/0.1 A/1 μm2 (calculated) |
| Polarisation | linear horizontal |
| Focus size (hor. x vert.) | 145 x 92 μm (calculated) |
| Temperature range | 160 K - 1100 K |
| Pressure range | 1·10-10 mbar working pressure in analysis chamber |
| Detector | DA30-L(R) |
| Manipulators | 5-Axis LN2-cooled and resistive sample heating manipulator |
| Sample holder compatibility | Omicron/SPECS-type sample holder system;
max size: 10 mm x 10 mm, up to 3 mm thickness. |
| Additional equipment | • Attenuator system, to allow measurements on radiation sensitive samples (<5 pA/cm² sample current).
• in situ sample preparation: ion beam cleaning, sample heating and deposition (evaporation / sublimation) of organic and inorganic materials • MCP LEED/Auger characterization |
| Additional information | Further details: beamline ENERGIZE |
