Open Port undulator beamline /UE51_PGM-2
It is an open-port soft X-ray beamline equipped with APPLE undulator.
Users can connect their own experimental station to the beamline. The X-ray beam exiting at the end of beamline is not horizontal, but has a tilting angle of 4° upwards. Currently, there are two in-house experimantal stations LiXEdrom and SOL3PES that are compatible with this 4° configuration.
The beamline provides various polarizations of light, including linearly horizontal, linearly vertical, linear 45°, linear 54.7°, and circular/elliptical light. Other polarizations can be generated upon request.
The beamline delivers high flux, mediocre resolution, and <50 micrometer focus.
Methods
Remote access
not possible
| Instrument data | |
|---|---|
| Location (Pillar) | 16.2 |
| Phone (~49 30 8062-) | 13426 |
| Source | UE51 undulator |
| Beam availability | 12h/d |
| Monochromator | PGM2 |
| Energy range (at experiment) | 100 - 1500 eV |
| Energy resolution | 30 - 300 meV |

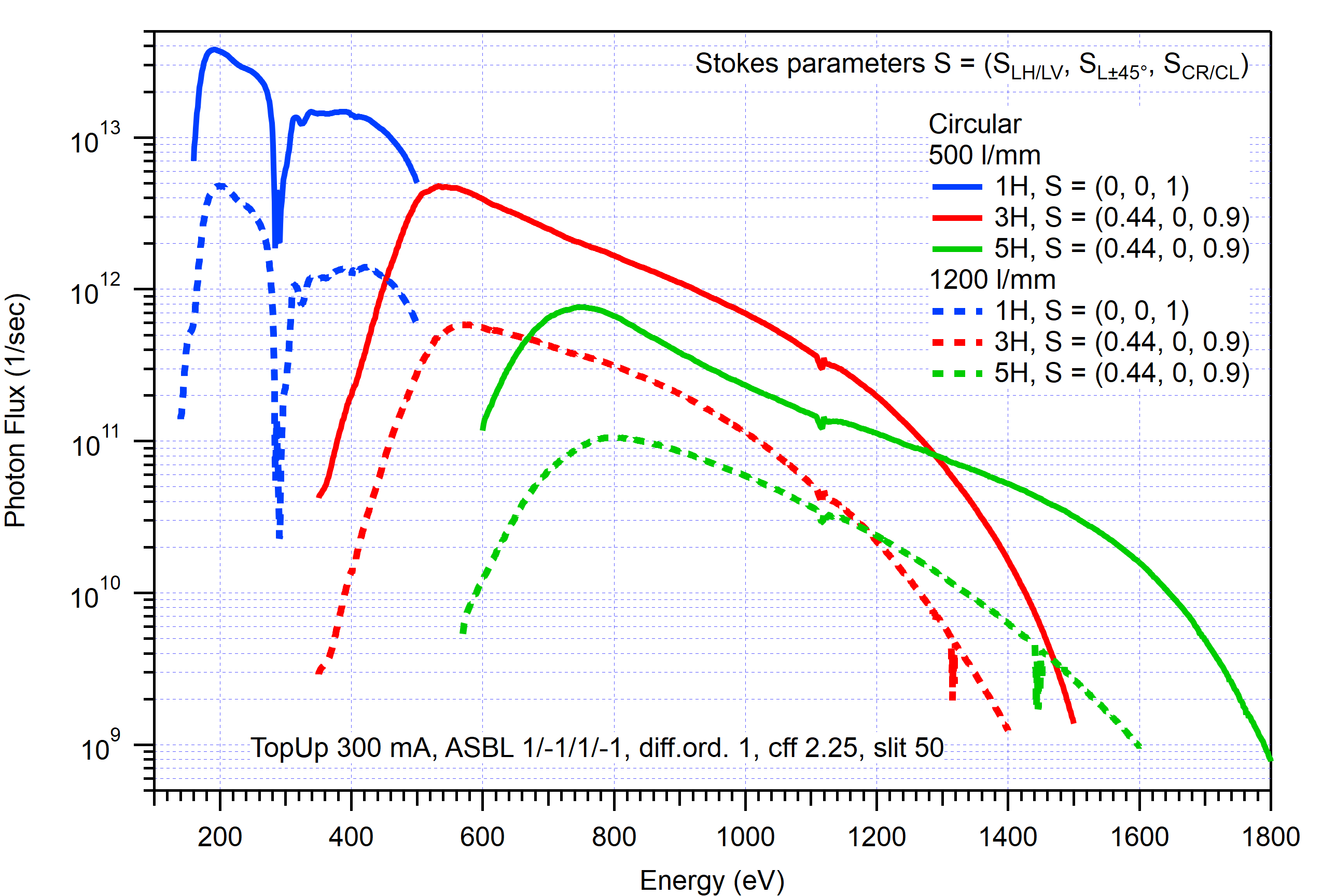

| Flux | 10^10 - 10^13 /sec |
| Polarisation | linear and circular |
| Focus size (hor. x vert.) | <50 x slit |
| Temperature range | room temperature |
| Pressure range | < 10^-8 mbar |
| Detector | |
| Manipulators | |
| Sample holder compatibility | |
| Additional equipment | |
| Additional information | |
