Virtual Tour - From the Source to the Target
ECR source of the CN injector
cyclotron with HF resonators

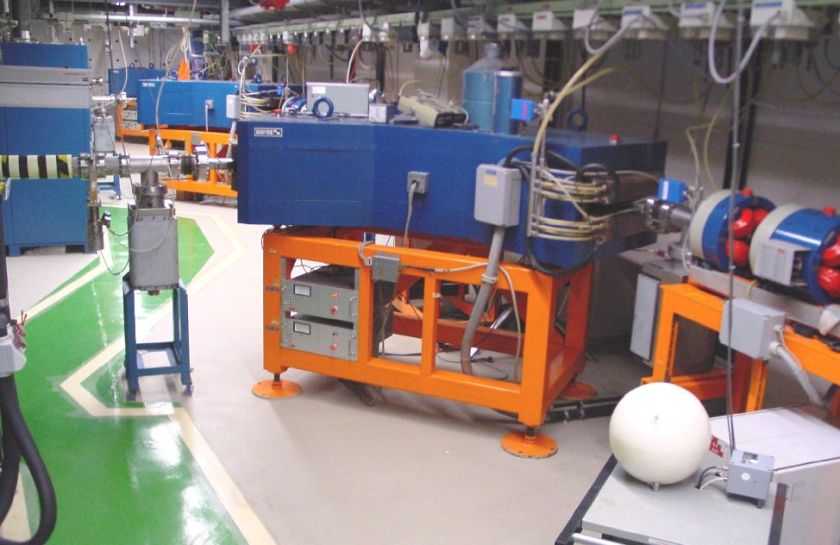

switcher magnets for cave b, c, and d

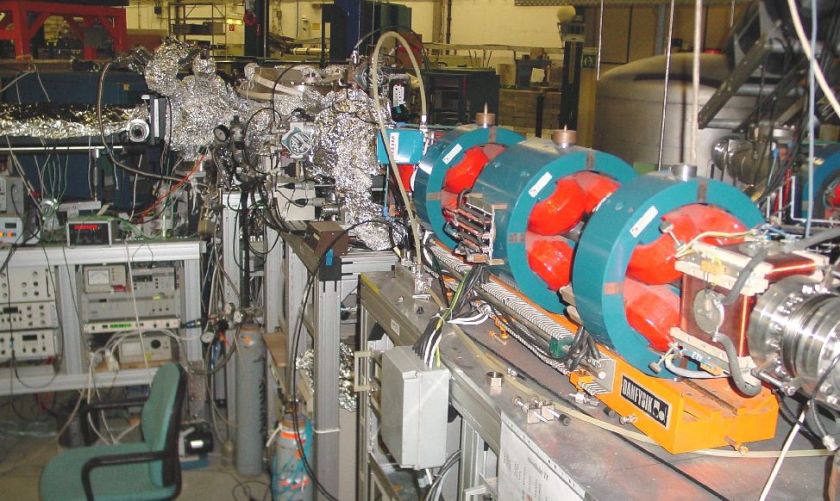

UHV beam line (TF) with magnetic quadrupole lens
wrapped UHV setup (3 chambers + manipulator)

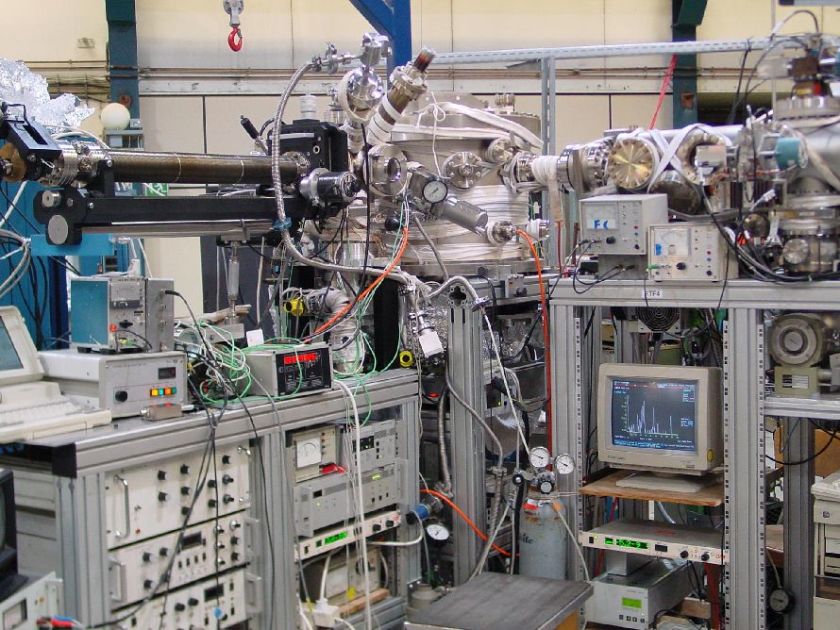

unwrapped setup with heating tapes
target-preparation chamber

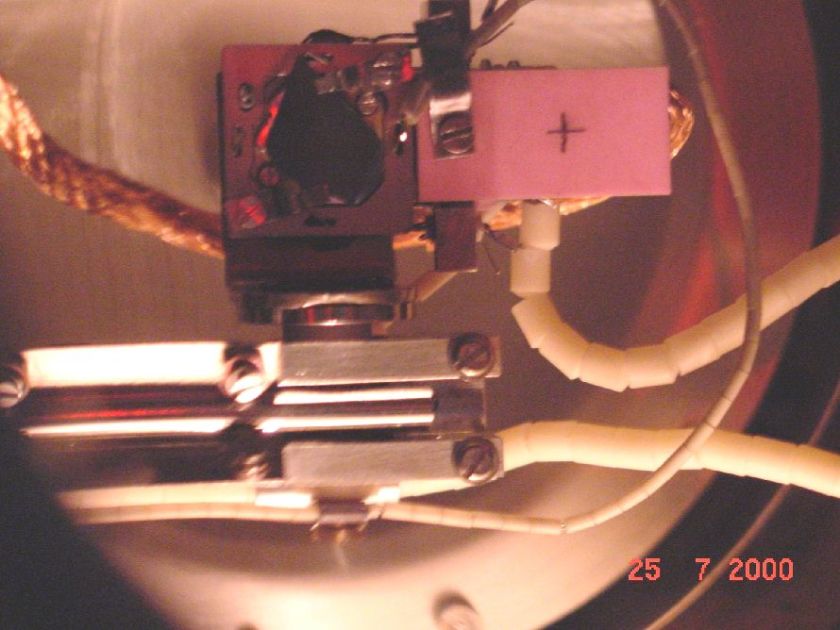

manipulator with sample holder and quartz
close-up of the sample holder

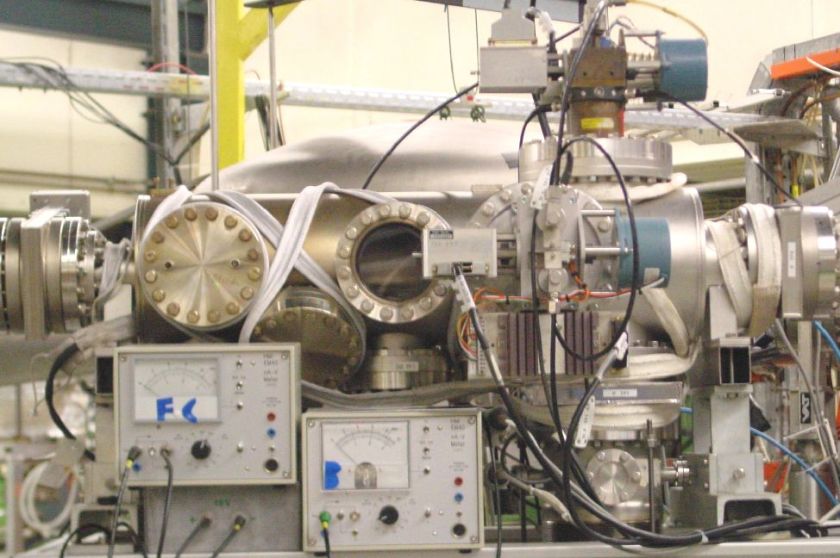

double differential pumping stage
uv- and x-ray source at main chamber with 2 magnetical shieldings

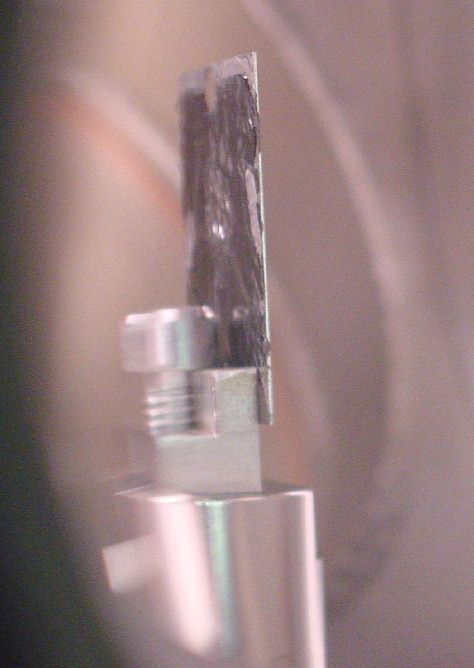

post-stripper foil (for charge equilibration)

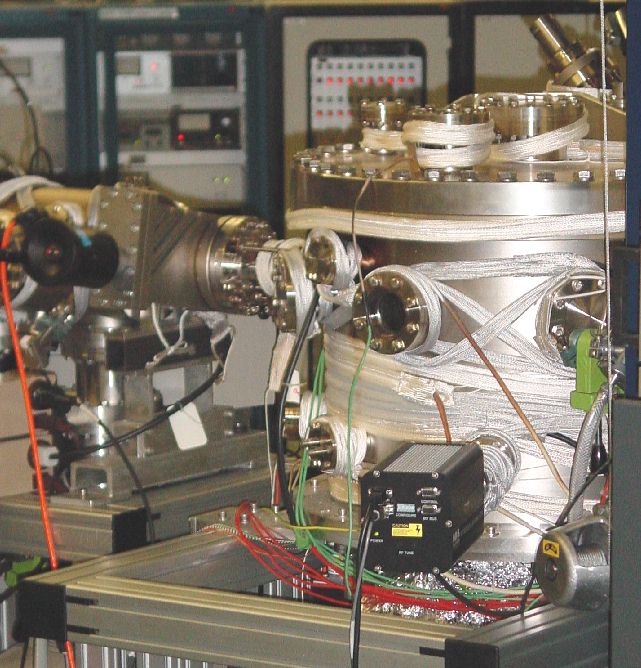

residual-gas analyzer at main chamber

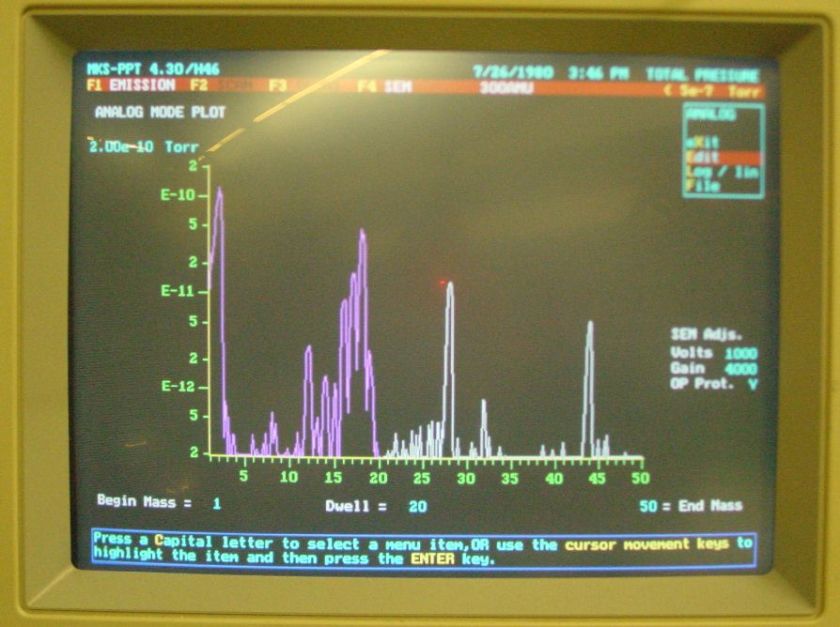

typical mass spectrum of residual gases in main chamber

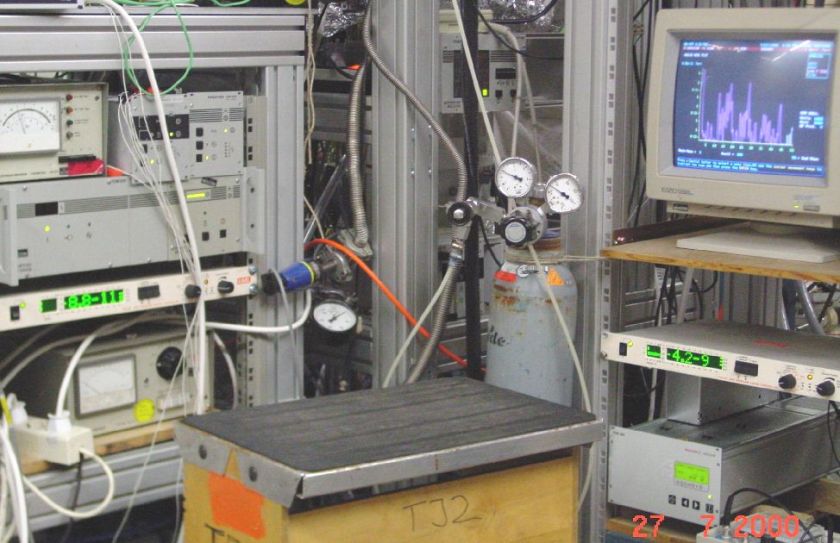

typical (best) pressure 9E11 mbar using all pumps

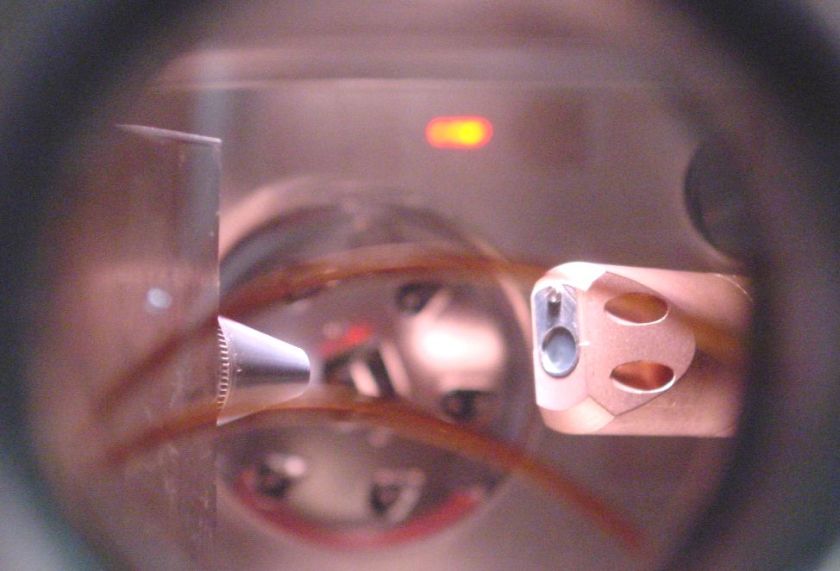

electron spectrometer (left) and x-ray source (right)
target manipulator (ions enter from the left side)

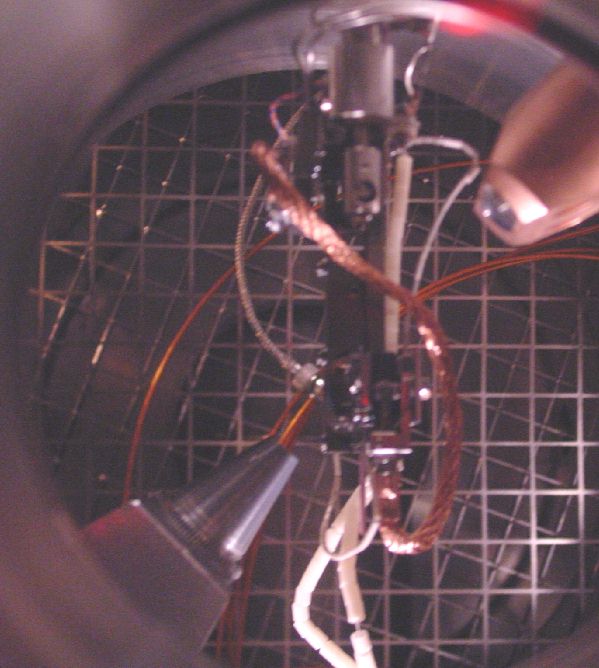

top view (ions enter from the left side)
