Reflectometer@OpticsBL

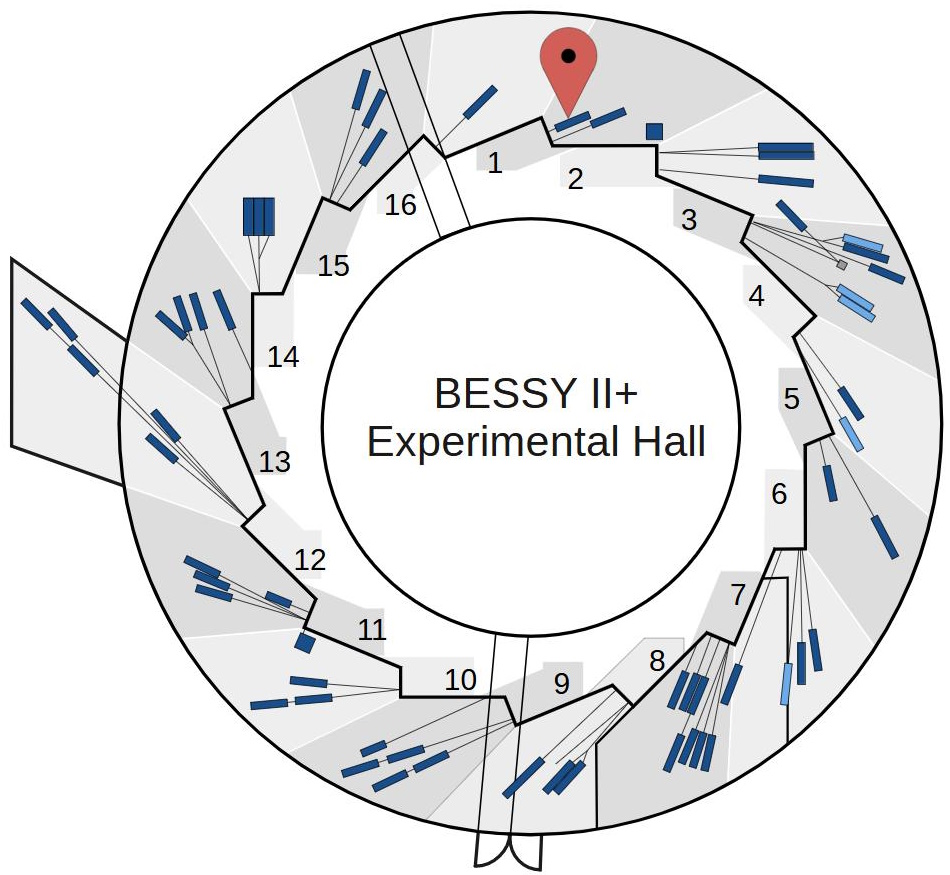

The at-Wavelength Metrology Facility /PM1

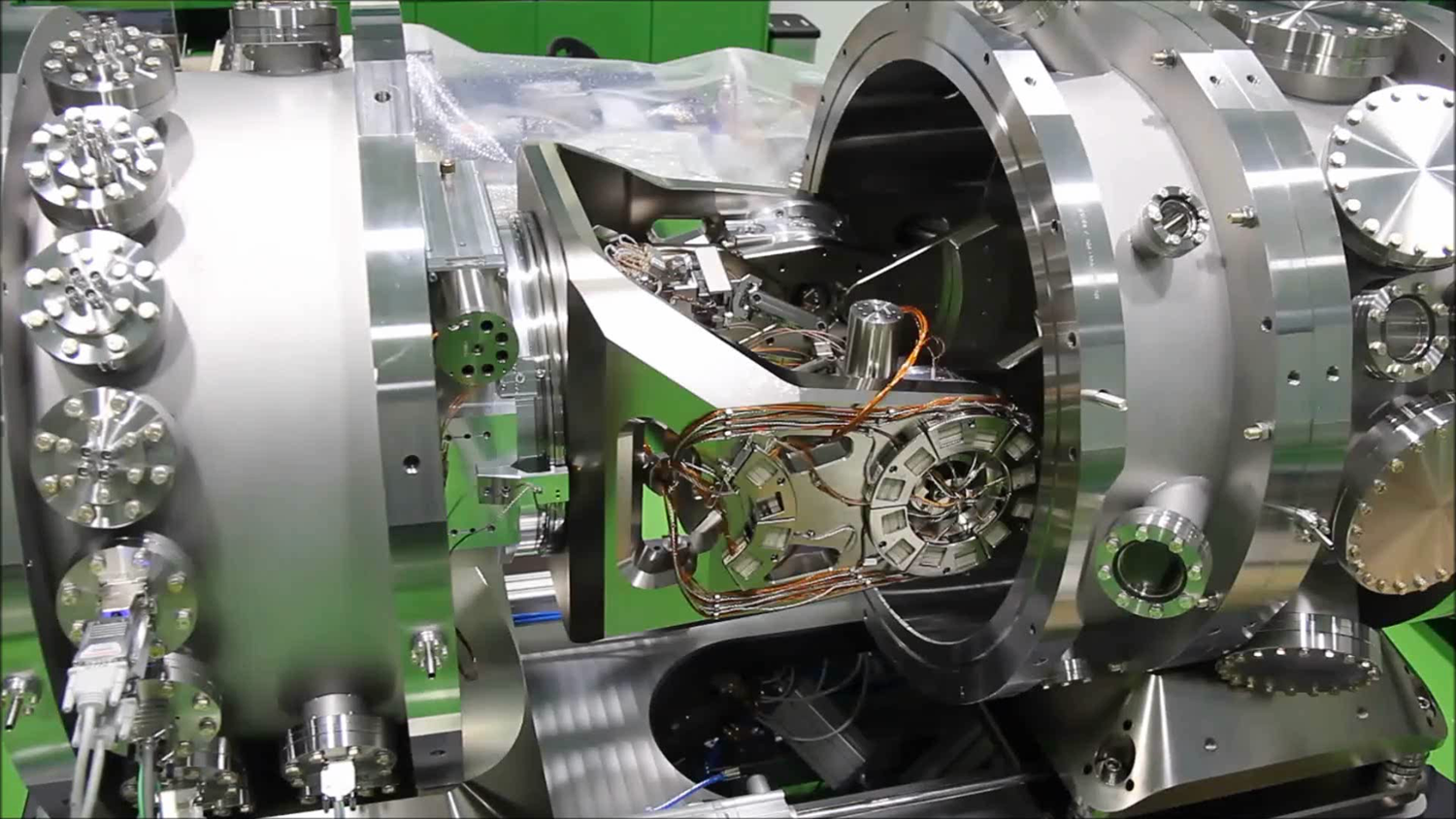

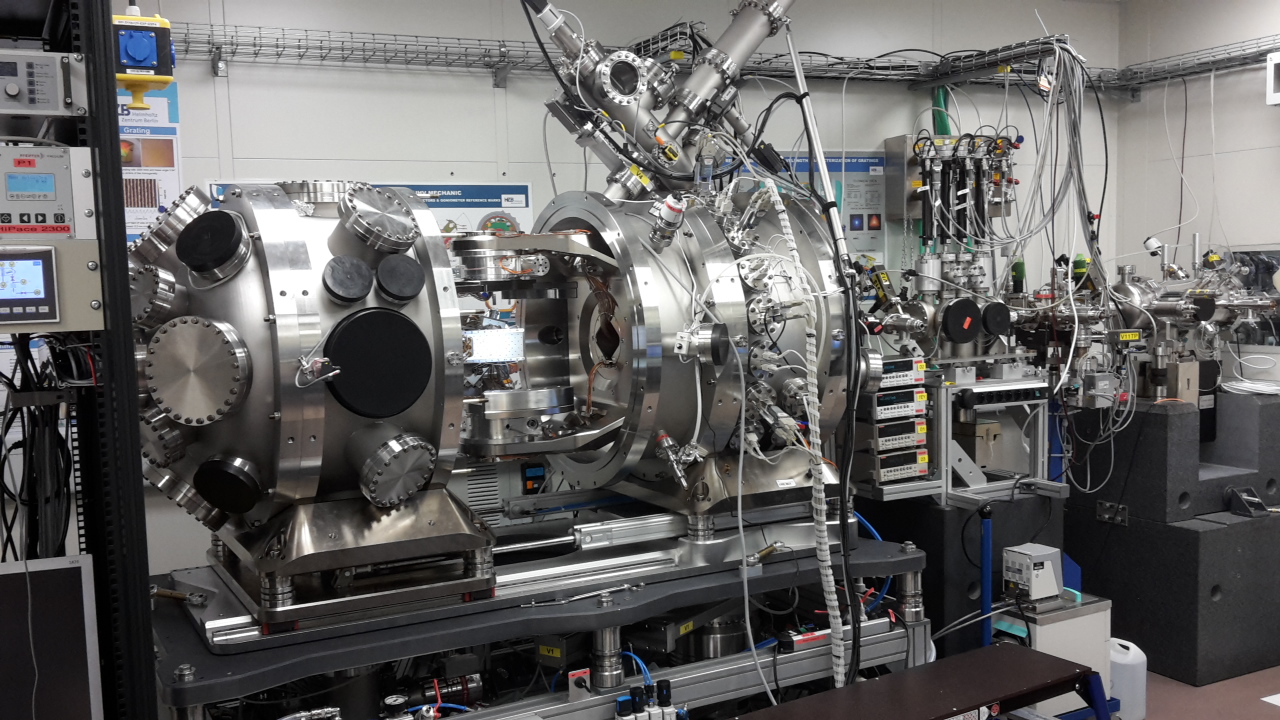

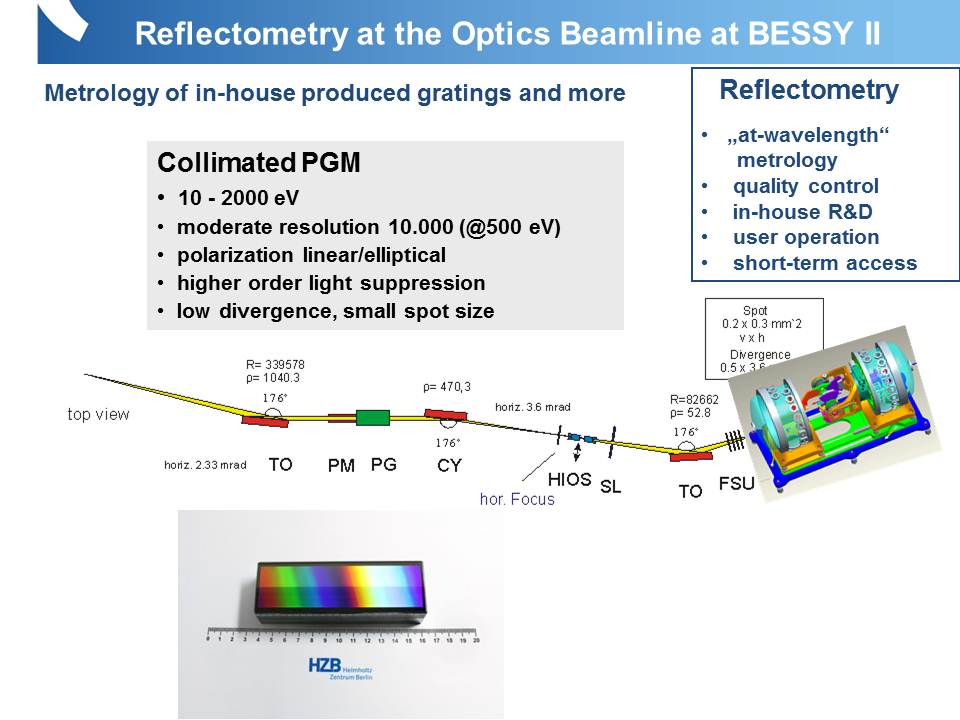

This versatile 11 axes UHV-reflectometer is located at the Optics Beamline, delivering UV and XUV radiation. The soft x-ray bending magnet beamline is equipped with a Plane Grating Monochromator operated in collimated light (collimated PGM). It uses the SX700-1 monochromator equipped with two diffraction gratings 150l/mm for low and 1200 l/mm for high energy ranges. The beamline is optimised for operation with moderate energy resolution but at very high specular purity and efficient stray light reduction provided by a 4-mirror High order suppressor (HIOS), a Filter and Slit Unit (FSU) and additional system of adjustable apertures over the beamline.

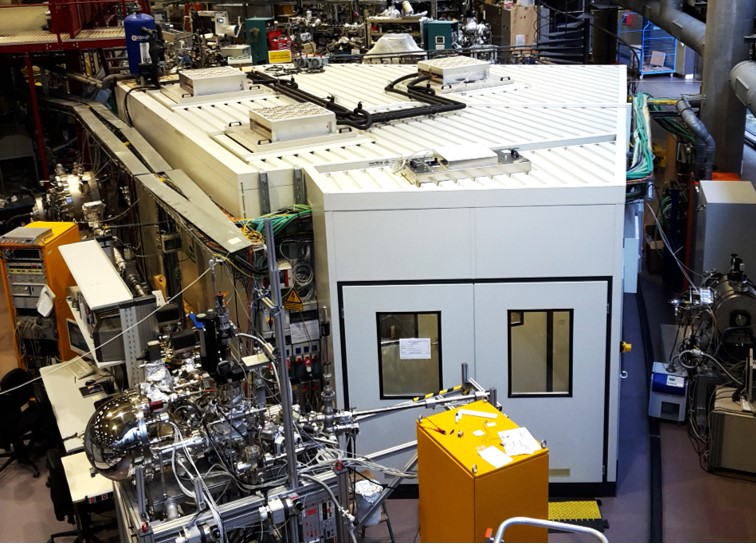

The reflectometer is optimized for operation with small test sample as well as for characterisation of real live-sized optical elements. The whole experiment is in a clean-room hutch providing rather safe conditions for testing contamination sensitive optics.
Selected Applications:- at-wavelength metrology on XUV optics (diffraction gratings, ML or single coated mirrors, filters and etc.)
- Soft X-ray/XUV reflectometry (SXR, XRR)
Methods
NEXAFS, Reflectivity, Polarimetry, Reflectometry
Remote access
depends on experiment - please discuss with Instrument Scientist
| Instrument data | |
|---|---|
| Phone (~49 30 8062-) | 14755 |
| Beam availability | 24h/d |
| Source | D11 (Dipole) |
| Monochromator | coll.-PGM (SX700-1) |
| Energy range (at experiment) | tbd |
| Energy resolution | 7,000 at 400 eV |
| Flux | 1e9 - 1e10 phot/s |
| Polarisation | horizontal |
| Focus size (hor. x vert.) | 0.3 x 0.2 mm2 (h x v) |
| Temperature range | room temperature |
| Pressure range | For details contact the instrument scientist |
| Detector | GaAs-photodiodes (4 mm x 4 mm) w/o pinholes and slits |

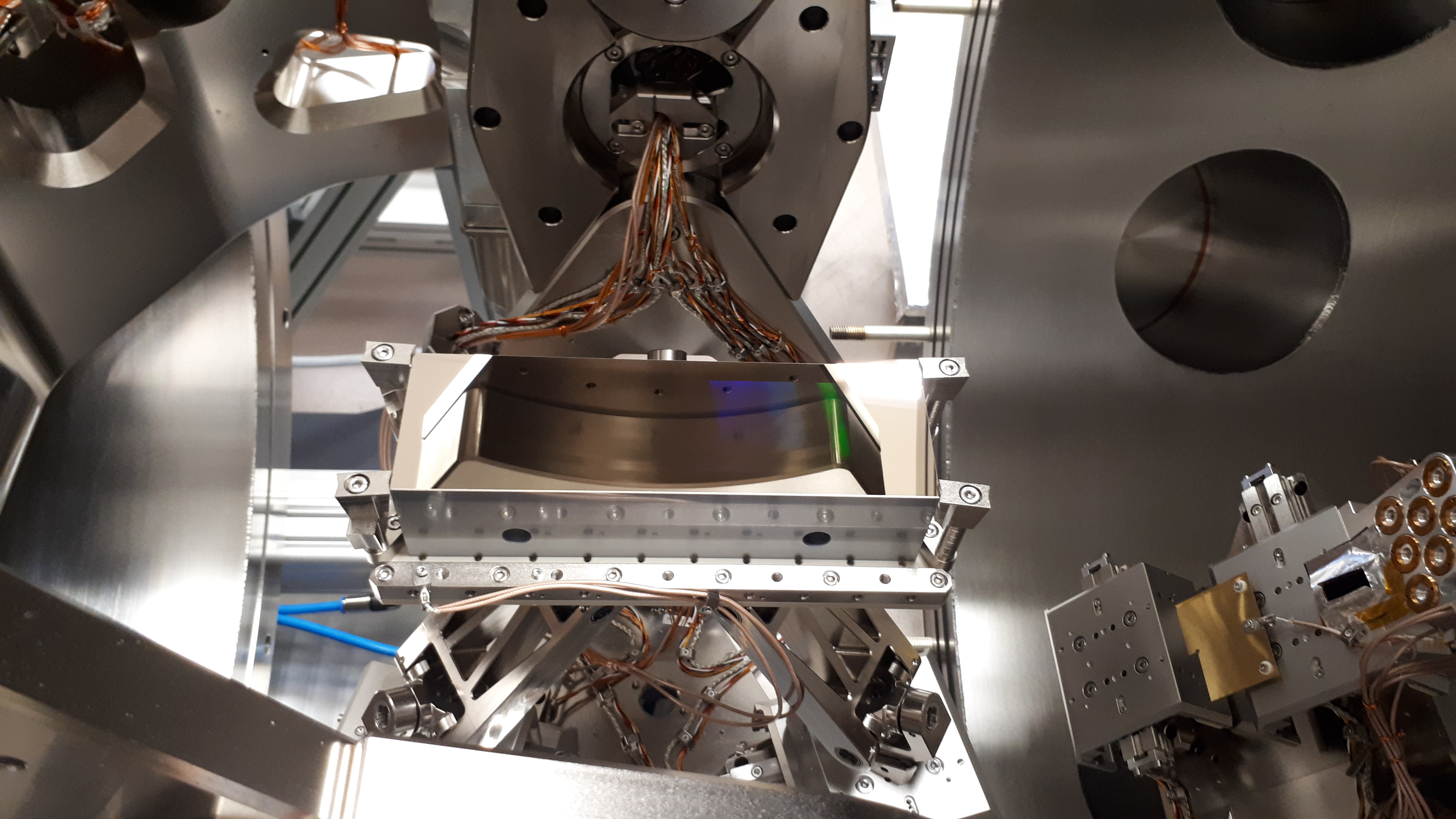

| Manipulators | 3 goniometers (Huber model 430, 411) for sample (azimuth and incidence angle theta) and detector (twotheta) scan, 6-axes sample positioning, 2 motors for detector off-plane scan |
| Sample holder compatibility | For details contact the instrument scientist. |
| Additional equipment | |
| Additional information | Further details: beamline OpticsBL |
| Max. sample size | 360 x 60 x 60 (L x W x H) mm |
| Min. sample size | 5 x 5 x 0.5 (L x W x H) mm |
| Azimuthal angle scan range | 0 - 360 degree |
| Incidence angle scan range | -90 - 90 degree |
| Minimum angle to normal | 2 degree |

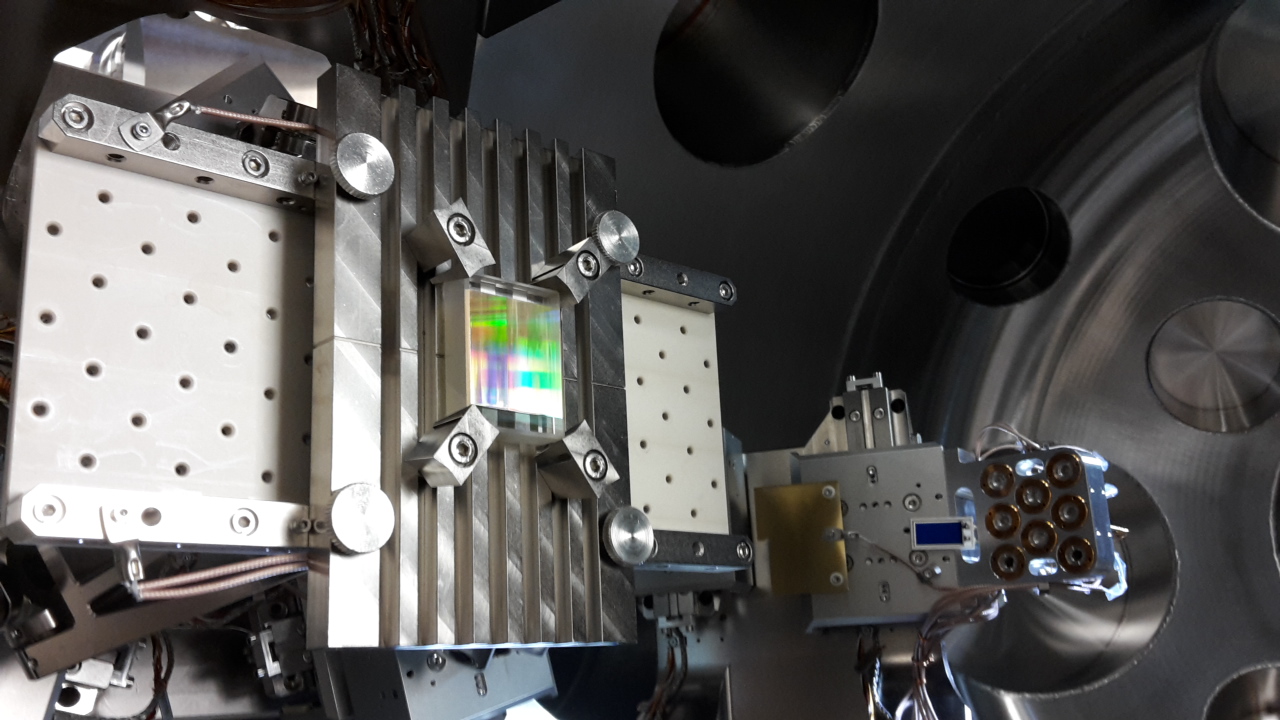

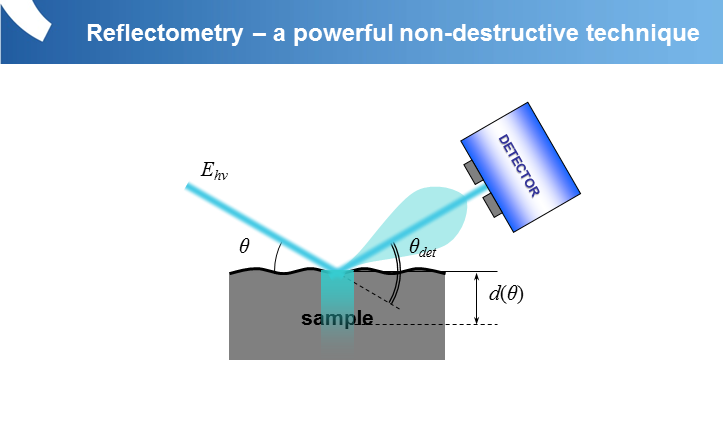

The samples are adjustable within six degrees of freedom, and the reflectivity can be measured at all incidence angles for both s- and p- polarisation geometry.

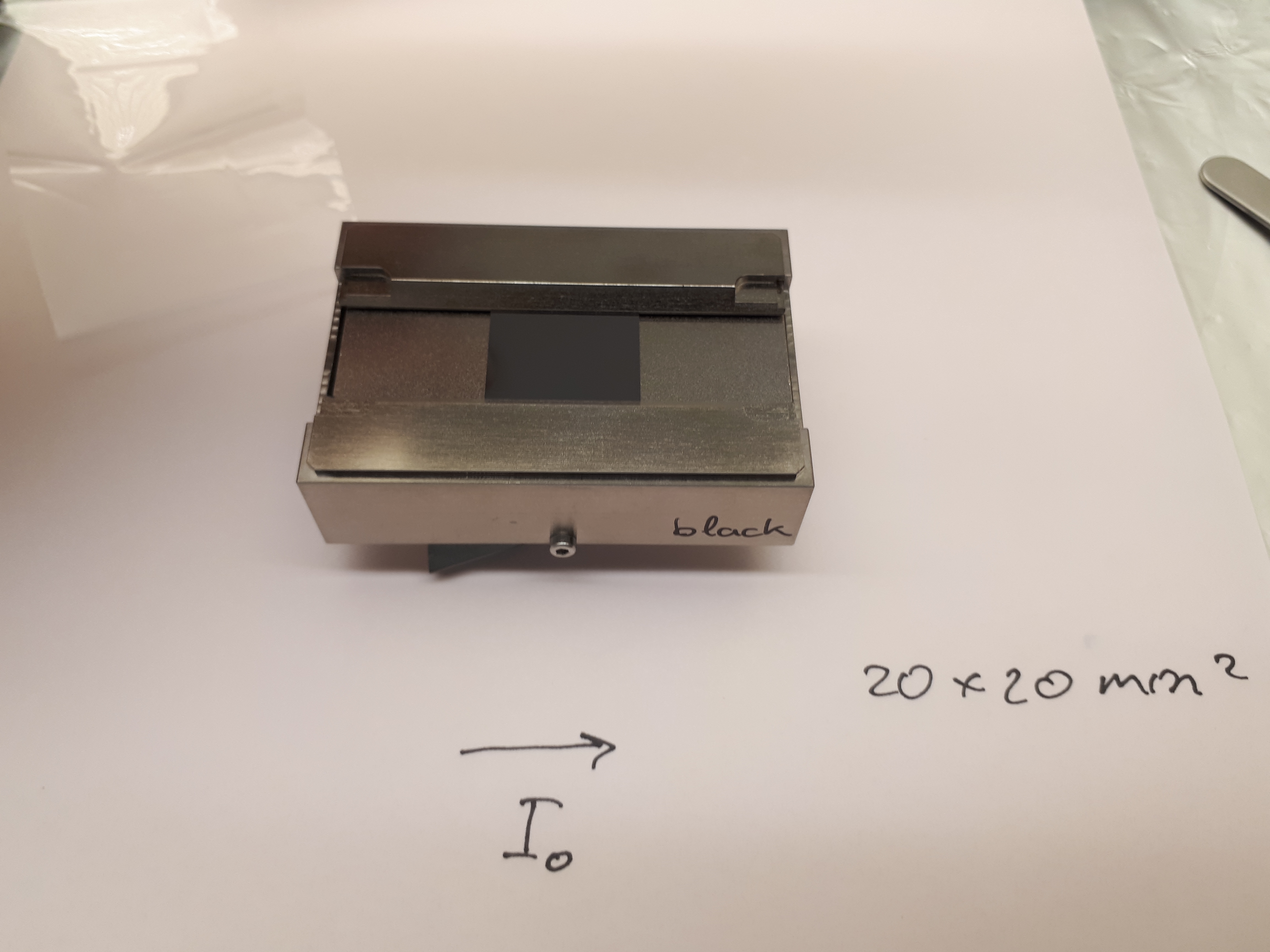

The Reflectometer is equiped by LoadLock system with 5 slots for sample holders. This anables fast in-vacuum change for sampls with sizes in limits of 60mm * 40mm * 10mm (l*w*h).
The setup is primarily dedicated to the in-house R&D in XUV optics and at-wavelength metrology of in-house produced diffraction gratings. It is also available by user-proposals with possibility of a short-term request is specific cases.
