Glovebox GC MEGA M-Line / Argon
This glovebox allows manipulating and mounting of samples in an inert Argon atmosphere. The samples can be transferred to other instruments with the help of an airtight transfer box. Such a box is available for the transfer to the spectrometer operated at the ISISS, ECCOS@BElChem-PGM, and CAT@EMIL stations operated by the Max-Planck-Society at HZB/BESSY II.

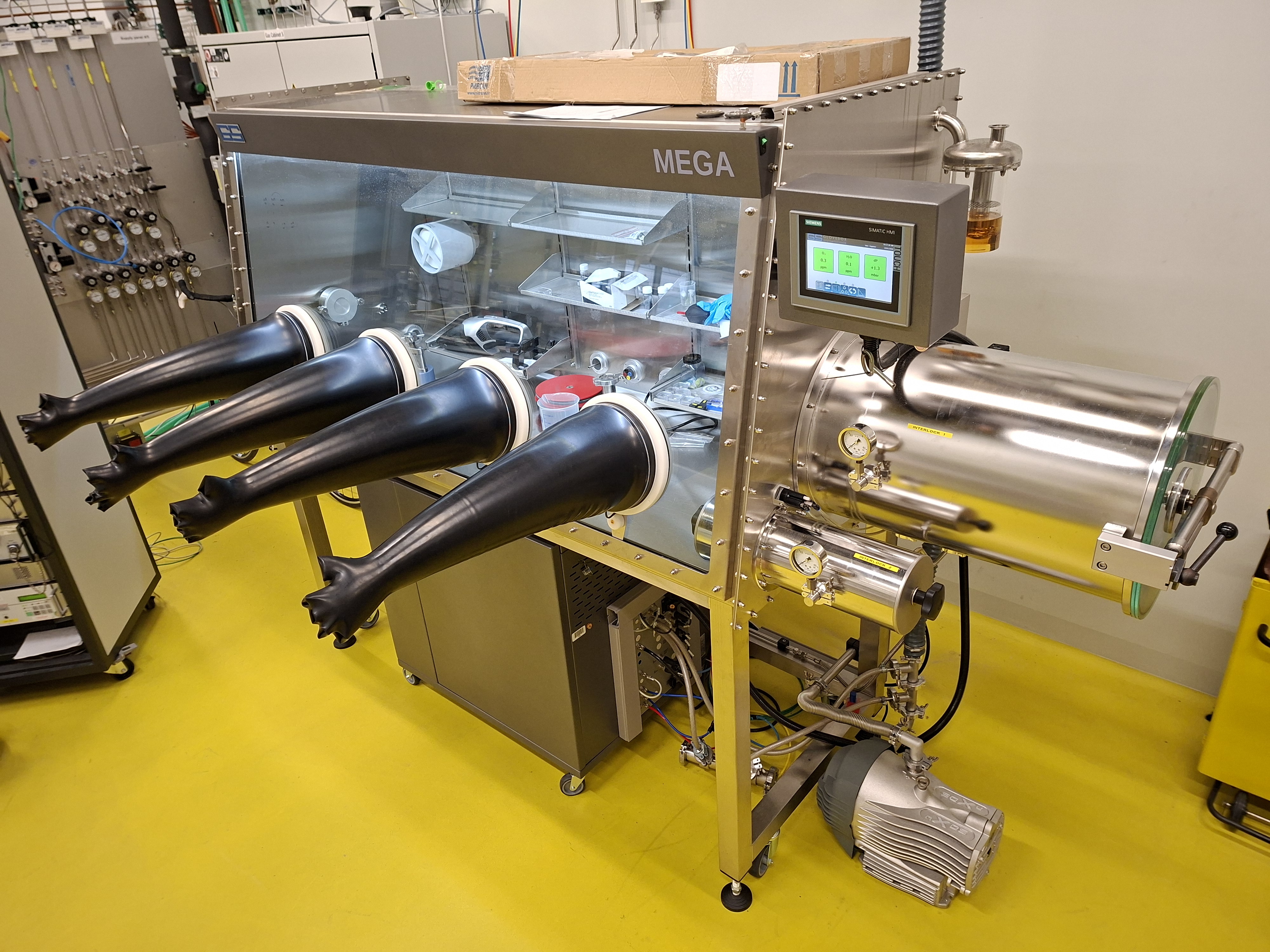

This large glovebox is equipped with 4 gloves to manipulate the samples and 3 antechambers for easy transfer of samples, transfer boxes, and other equipment into and out off the glovebox.
The glovebox is available for non-MPG users but only after the MPG responsible (Dr. Detre Teschner, MSc. Daniel Brennecke) have been contacted before first usage and an introduction to the operation of the glove box was given.
Anwendungsbeispiele:
- handling of air sensitive sample
- handling of pre-treated samples where the "as is" state should be studied by spectroscopy
- short term storage of air sensitive samples
Methoden
Das Gerät kann genutzt werden
von externen Nutzern, von HZB Nutzern, in Kooperation mit der Organisationseinheit
Labore
Probentypen
Crystal, Powder, Multilayer/Film, Amorphous
| Short description | Glovebox GC MEGA M-Line / Argon |
| Nutzung | non-MPG users only after contact to MPG responsible |
| Gebäude/Raum | 14.54 / 0005 |
| Location | CAT laboratory (Adlershof) |
| Zusatzinformation | inside EMIL building inside the radiation supervised area access only after online safety briefings "radiation protection", "general HZB safety" and "CAT user" |
| Geräteparameter | |
| operating gas | Argon |
| no of workplaces | 4 gloves |
| no/sitze of antechamber | 1x large with diamter 400mm (with glass doors) 1x small with diameter 150mm 1x CF63 port for option to connect UHV transfer rod |
| included purifier system | 2 selectable purifier systems: one removes only O2, the other both O2 and H2O |
| operation | 7" color touch screen automated antechamber cycles |
| equipment | power plugs extendable shelves, small battery hoover |
| contact | Dr. Detre Teschner Msc. Daniel Brennecke |
For more details and current status of the instrument please contact the glovebox responsible.
