PM3
Soft X-ray dipole variable polarisation with PGM open port + scattering chamber
PM3 merges the developments of the former BESSY I SX700 III monochromator for elliptically polarized VUV radiation and of BESSY II collimated plane grating monochromators. This way it is possible to achieve circular polarization from a BESSY II dipole in the range 20 – 2000 eV with high photon flux, high energy resolution and high stability.
Instruments
Scattering@PM3, ALICE II@PM3, SoLiAs@PM3, GELEM-PEEM@PM3, User station@PM3
| Beamline data | |
|---|---|
| Segment | H11 |

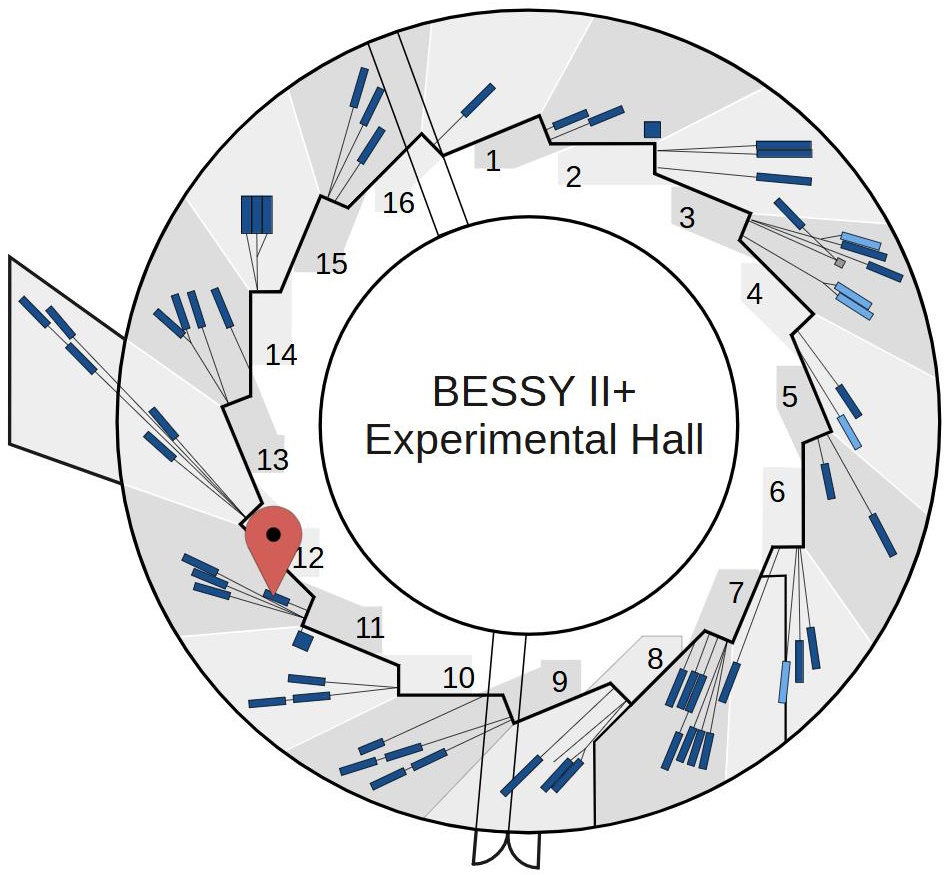

| Location (Pillar) | 13.2 |
| Source | D111 (Dipole) |
| Monochromator | PM3 |
| Energy range | 20 - 1900 eV |
| Energy resolution | 32000 at 64 eV |
| Flux | 1e9 - 1e10 |
| Polarisation | • horizontal • circular |
| Divergence horizontal | 1.5 mrad |
| Divergence vertical | 1 mrad |
| Focus size (hor. x vert.) | 180 µm hor., vert. depends on exit slit |
| User endstation | Possible |
| Distance Focus/last valve | 350 mm |
| Height Focus/floor level | 1432 mm |
| Beam availability | 24h/d |
| Phone | 0049 30 8062 13429 |
"PM3 merges the developments of the former BESSY I SX700 III monochromator for elliptically polarized VUV radiation and of BESSY II collimated plane grating monochromators. This way it is possible to achieve circular polarization from a BESSY II dipole in the range 20 – 2000 eV with high photon flux, high energy resolution and high stability." http://dx.doi.org/10.17815/jlsrf-2-73
For more details and current status contact the beamline scientist(s).
