UE49_SGM

Soft X-ray undulator radiation variable polarization with SGM for excited state dynamics at EDAX

Beamline UE49-SGM is a dedicated high-flux soft x-ray beamline, spanning the energy range of 95 eV to 1400 eV. Its micrometer focus makes it ideally suitable for µm liquid jet soft X-ray spectroscopy with full polarization control.

Optical layout of the UE49_SGM beamline (Picture by Friedmar Senf)

Optical layout of the UE49_SGM beamline (Picture by Friedmar Senf)


Beamline data
Segment L08
Location (Pillar) 10.1
Source UE49 (Elliptical Undulator)
Monochromator Spherical VLS grating monochromator
Energy range 90 - 1400 eV
Energy resolution 4 000 - 12 000
Flux Up to 4*1013 photons / s / 0.1A / 0.1%BW
Polarisation Full polarization control
Divergence horizontal -- mrad
Divergence vertical -- mrad
Focus size (hor. x vert.) 20 μm x 10 μm
User endstation not possible
Distance Focus/last valve -- mm
Height Focus/floor level 1100 mm
Beam availability 12h/d
Phone +49 30 8062 14832

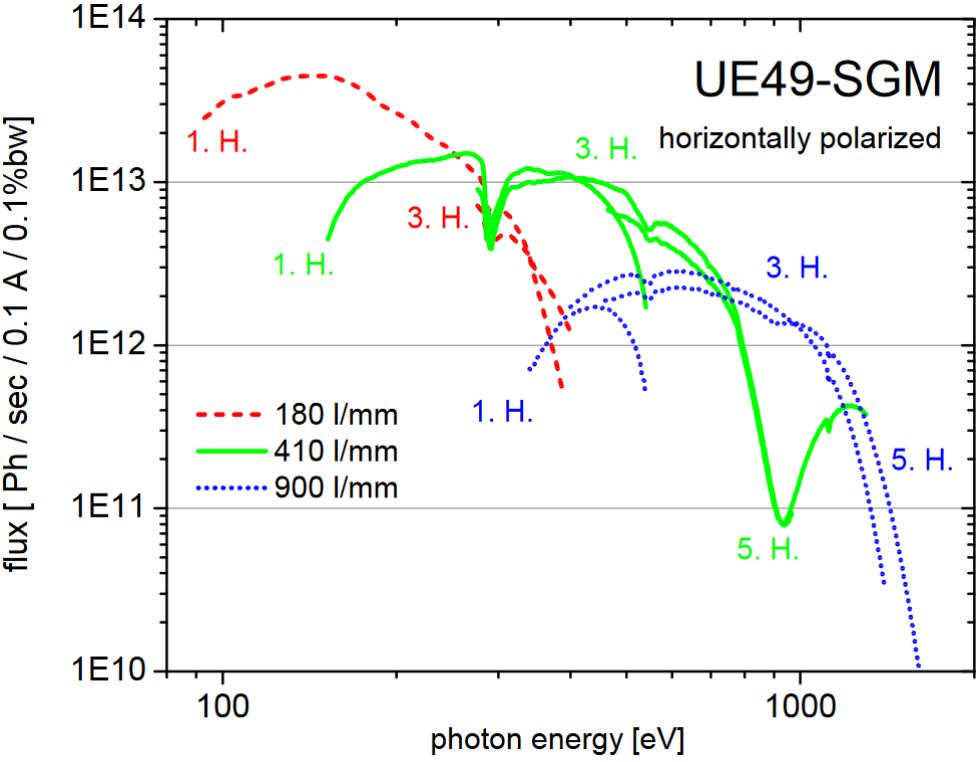

Experimentally recorded photon flux as a function of energy for different gratings and different harmonics of the undulator for horizontal polarized light.

Experimentally recorded photon flux as a function of energy for different gratings and different harmonics of the undulator for horizontal polarized light.

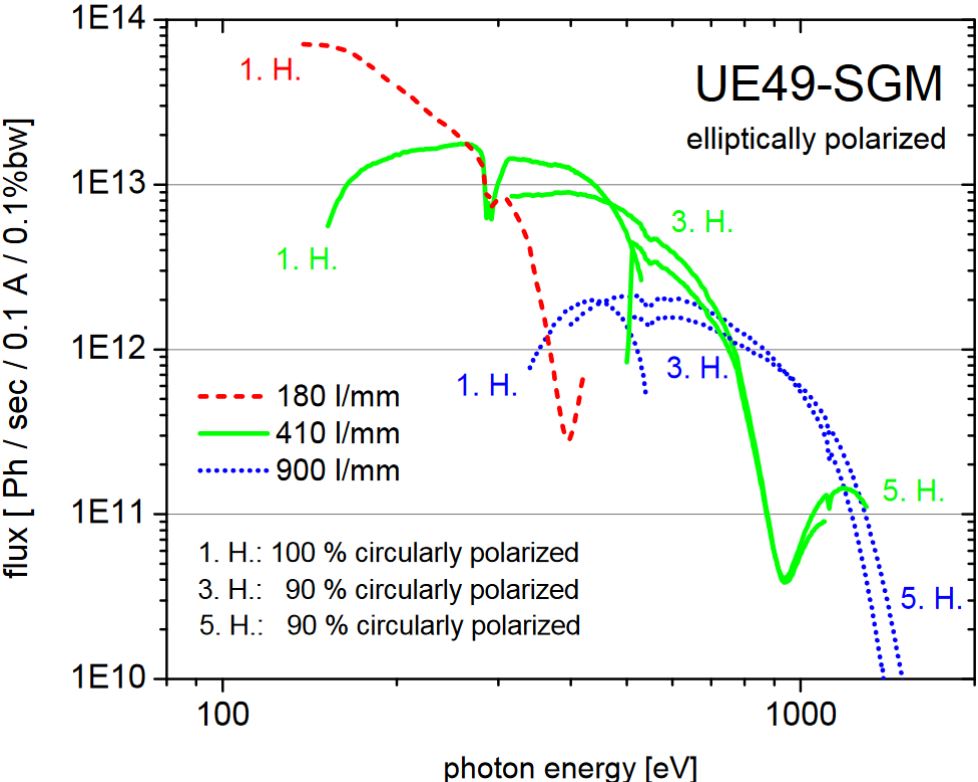

Experimentally recorded photon flux as a function of energy for different gratings and different harmonics of the undulator for circular polarized light.

Experimentally recorded photon flux as a function of energy for different gratings and different harmonics of the undulator for circular polarized light.


For more details and current status contact the beamline scientist(s).
