A frustrated material, and a frustrating synthesis

In condensed matter physics, "frustration" is a technical term: it describes a lattice geometry where competing magnetic interactions cannot all be satisfied simultaneously. This summer at HZB, I have been trying to *make* a frustrated material, and in the process I discovered that the word also describes rather accurately what happens when your sample explodes for the third time in a week.

Picture three magnetic moments at the corners of a triangle, each wanting to point opposite its neighbours, the way antiferromagnets do. Two manage it easily: up, down. The third is stuck, satisfying one neighbour and disappointing the other no matter which way it points. The system compromises, often by refusing to settle into an ordered magnetic state at all, even at temperatures where it "should". That's geometric frustration, and it's one of the more reliable routes to genuinely exotic behaviour in condensed matter physics: spin liquids, unconventional ground states, systems that stay disordered almost down to absolute zero out of sheer geometric stubbornness.

My project is to synthesize two neodymium-platinum-silicon intermetallics, NdPtSi and Nd₃Pt₂₃Si₁₁, that are candidates for exactly this kind of magnetism, then perform low-temperature measurements that will tell us whether the frustration is real. My current goal is step one: make the material at all, pure enough that later measurements are actually telling us about the compound itself.

Step one took longer than I expected.

The recipe, and what happened to it

The theory is simple: weigh neodymium, platinum, and silicon powder to the right ratio inside an argon glovebox, press it into a pellet, melt it with an electric arc into a silvery button, anneal it for days so the atoms find their proper places, then check the result with X-ray diffraction. Four steps.

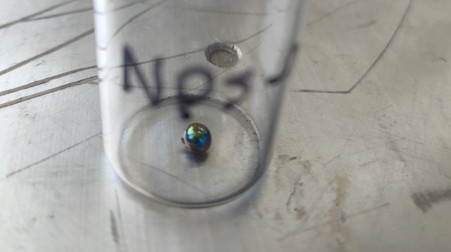

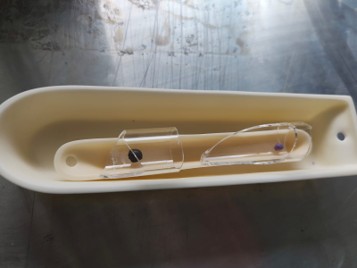

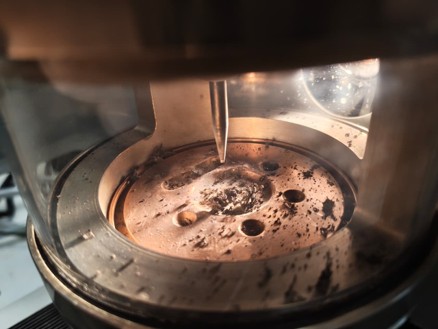

In practice, both compounds came out of their first hundred-hour anneal visibly discolored: NdPtSi black, Nd₃Pt₂₃Si₁₁ an alarming, saturated purple. Nd₃Pt₂₃Si₁₁ also had a habit of detonating on first contact with the arc, scattering pellet fragments across the melting chamber; one batch was salvageable by scraping the pieces back together, another picked up contamination while it was being recovered and had to be scrapped. NdPtSi, meanwhile, turned to fluffy powder on one remelt and cracked apart on another, and in what I've decided to call the low point of the project, a freshly melted, genuinely pretty iridescent droplet slipped out of the copper hearth, hit the floor, and was never recovered.

Chasing down the discoloration

Both compounds discolored during the exact same step, the hundred-hour anneal under nitrogen (the argon line wasn't set up for a multi-day bake). Our best guess is oxide formation, mostly neodymium oxide, though it's not confirmed; a reaction with the nitrogen itself is the other candidate. For later attempts we dropped the long anneal and relied on repeated arc-melting instead to homogenize the samples.

A fair amount of the eight weeks, too, went into ordinary upkeep of two well-used pieces of shared lab equipment: patching, then replacing, a leak in the glovebox gloves; fixing a water leak and a stuck door latch on the arc melter; cleaning up its copper hearth. It added up, including one evening spent at the lab until 9 p.m. getting a sample loaded before a weekend anneal so I wouldn't have to come back the next day just to press a button.

Getting there anyway

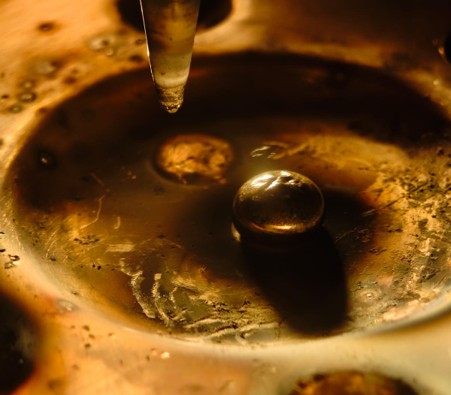

By the fourth NdPtSi attempt, at twice the sample mass, the pellet still shattered into powder on first contact with the arc, same as always. But the recovered powder survived several remelts cleanly this time, settling into an even, silvery button with no blackening.

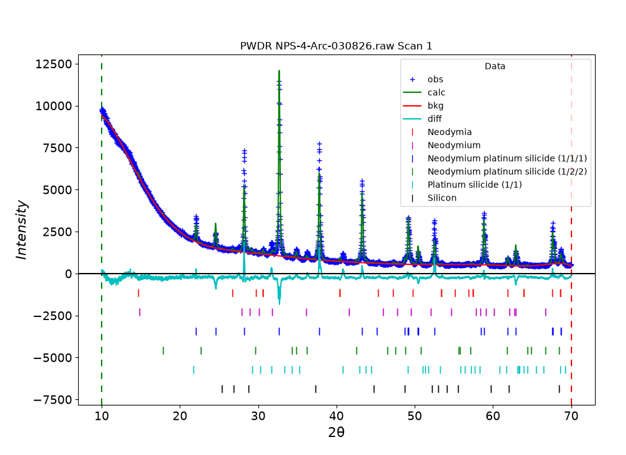

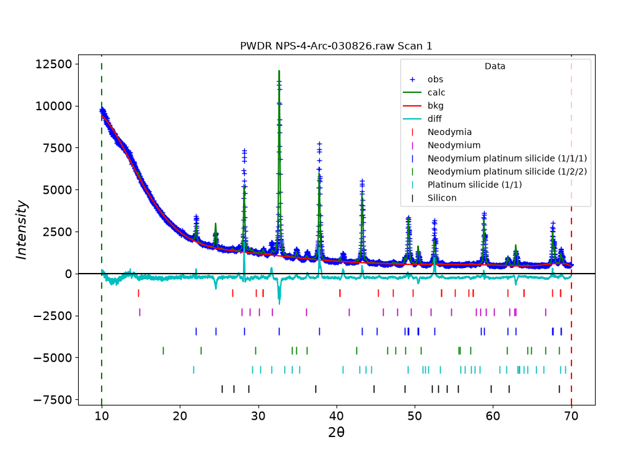

X-ray diffraction showed the ternary NdPtSi phase dominant, with only minor unreacted precursors and almost no oxide; a follow-up diagnostic check confirmed it: a genuinely high-purity sample, even if not perfectly pure.

I can't point to the one thing that made attempt four different (larger batch, no anneal, faster handling between machines, probably all of it), but reproducing it on purpose is next. For now, it's just satisfying to finally hold a sample that is what it's supposed to be.

Frustration, both kinds

There's an irony I like in this: the phenomenon I'm chasing exists because a system can't resolve every constraint at once, and yet it doesn't collapse, it just finds a stubborn new way to be stable, which is a fair description of the synthesis process too.

Next is remelting the good NdPtSi sample further and sending it for the magnetic measurements that will actually test for frustration. Nd₃Pt₂₃Si₁₁ is on the back burner, not abandoned; it likely needs sealed-quartz-tube synthesis rather than open arc-melting. Eight weeks ago none of this existed. Now one of the two compounds does, clean enough to be worth measuring, and science, it turns out, rewards exactly that kind of patience and stubbornness more than it rewards a single clever idea.
