The scientific aim at the BElChem-PGM station is to study the electronic surface/near surface structure of functional materials in the presence of a reactive environment. This includes both gas/solid interfaces (e.g. heterogeneous catalysis) and liquid/solid interfaces (e.g. catalytic water splitting).Anwendungsbeispiele:
- X-ray photoelectron spectroscopy (XPS) under high vacuum (p=10^(-8) mbar) and near ambient pressure conditions (maximum 20 mbar, typically 1 mbar)
- X-ray aborption spectroscopy (XAS) at pressure up to 20 mbar with NAP-HE-XPS endstation
- log-in methodology applying the beamline chopper to modulate the incoming X-ray induced signal
depends on experiment - please discuss with Instrument Scientist
|Energy range||90 - 2000 eV|
|Energy resolution||70meV at 400eV photon energy|
|Flux||4.00 1013 mbar photons/s@300mA|
|Focus size (hor. x vert.)||100 µm X 20 µm (expected)|
|Phone||+49 30 8062 14842|
|Temperature range||room temperature up to 1000 K|
|Pressure range||Maximum pressure: 20 mbar|
Minimum pressure: 10-8 mbar
Typical pressure: 1 mbar
For more details contact the instrument scientist.
|Detector||1D delay line detector (1D DLD) (SURFACE CONCEPT, Mainz)|
|Manipulators||various, exchangeable for optimised sample environments|
|Sample holder compatibility||Homemade concept. For details contact the instrument scientist.|
|Additional equipment||PRISMA 200 mass spectrometer, FISHER SCIENTIFIC gas chromatograph, process gas pumping line, electrolyte dosing module with perestaltic pump|
Obviously, the understanding of the interaction of a catalyst surface with the reactants plays a key role in a detailed description of catalytic processes. X-ray photoelectron spectroscopy (XPS) is a well-established powerful tool to study in detail the outermost surface of solids but it was traditionally restricted to high vacuum and low pressure conditions. However, recently a methodology based on a differentially pumped electrostatic lens system has gained much interest and opened possibility to study catalytic processes in more diverse environments.

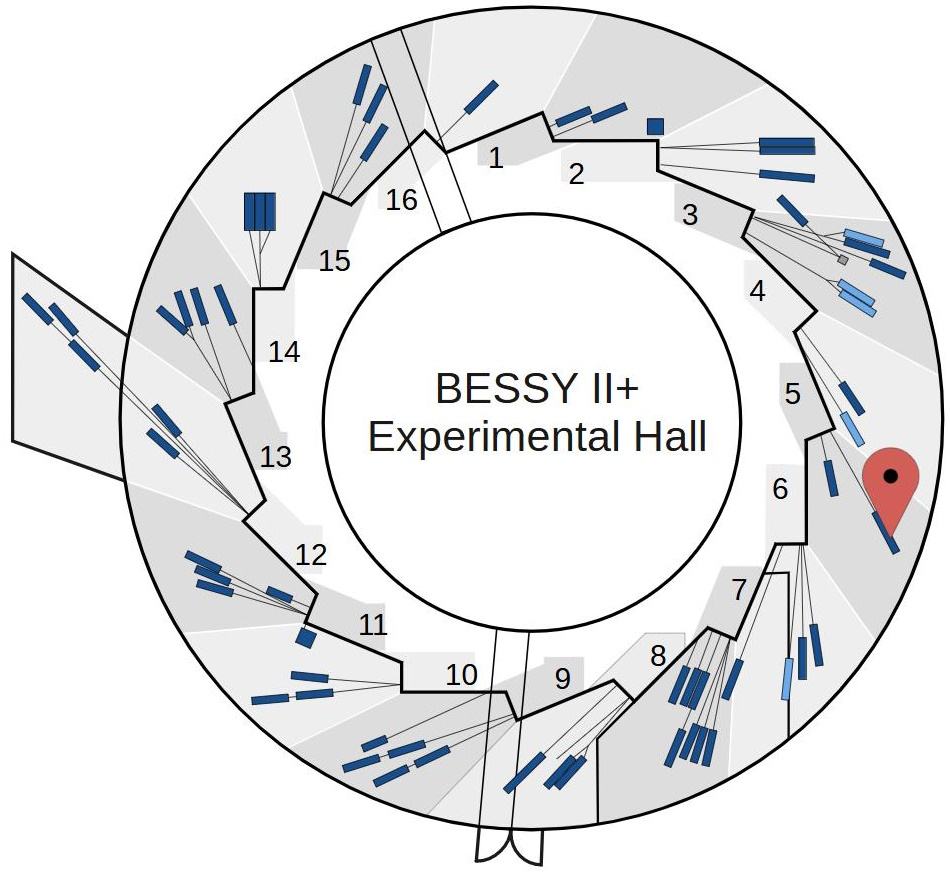

The Berlin Joint Lab for Electrochemical Interfaces (BElChem) is located at the BESSY II synchrotron in Berlin, Germany, and co-run by the Fritz-Haber-Institut, the Max-Planck-Institut of Chemical Energy Conversion and the Helmholtz-Zentrum Berlin. BElChem focuses on providing a molecular-level description of (photo)electrochemical interfaces that are of high relevance for solar fuel production and renewable energy storage.
The BElChem facility consists of two beamlines with two endstations in two separate hutches and an additional sample preparation/chemical lab. BElChem-PGM (plane grating monochromator) covers the soft X-ray energy range, whereas BElChem-DCM (a dipole magnet sourced beamline) with a double crystal monochromator (DCM) covers the tender X-ray energy range.
Please find more details on BElChem in
