TMP-PEC-XRD

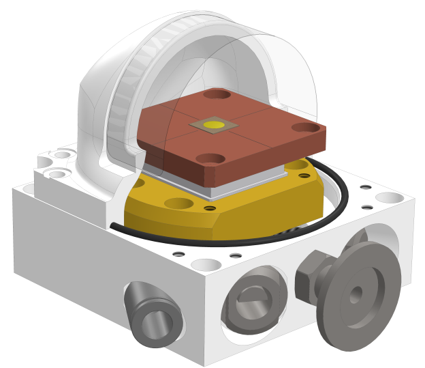

Peltier-Cell for XRD

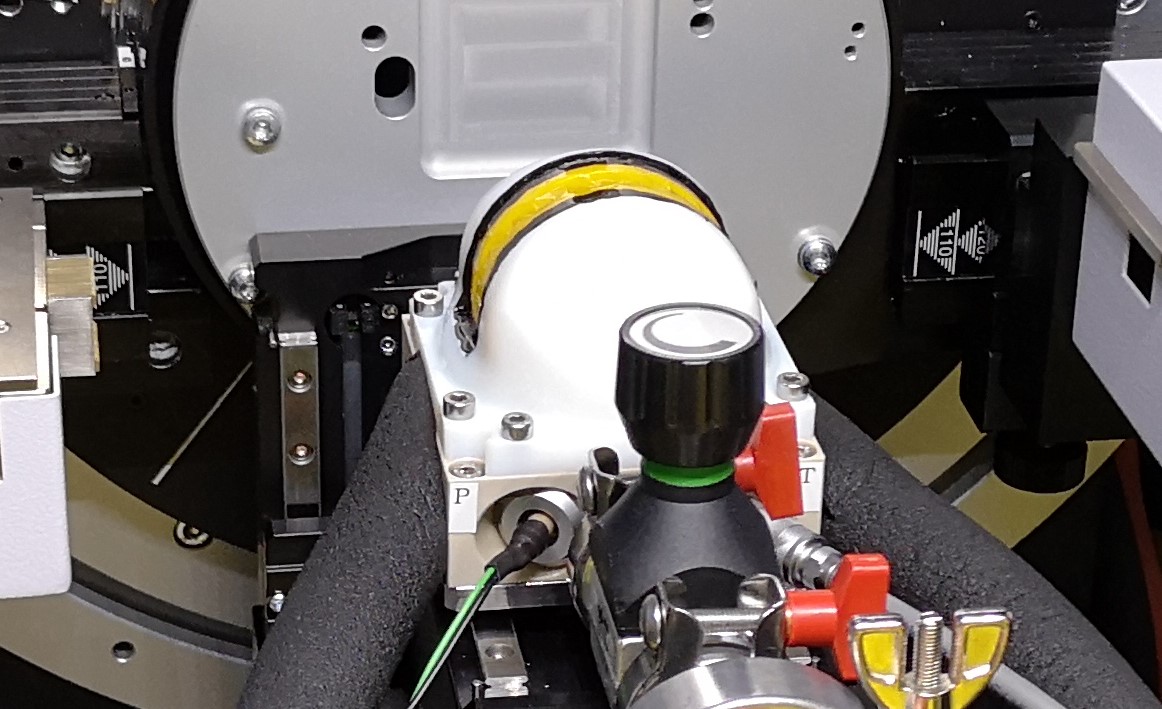

This temperature setup is made for XRD investigastions in reflection geometry.
| Specifications | |
|---|---|
| 220 - 400 | temperature range K |
| < 130 | pressure range kPa |
| Kapton | beam window |
Due to the Peltier-based temperature regulation controlled by a Lakeshore temperature controller (LS336) a stability of better than 5 mK can be reached on the copper sample table under vacuum.
