FemtoSpex-SurfDyn
Excited states dynamics with x-rays /UE56_1-PGM

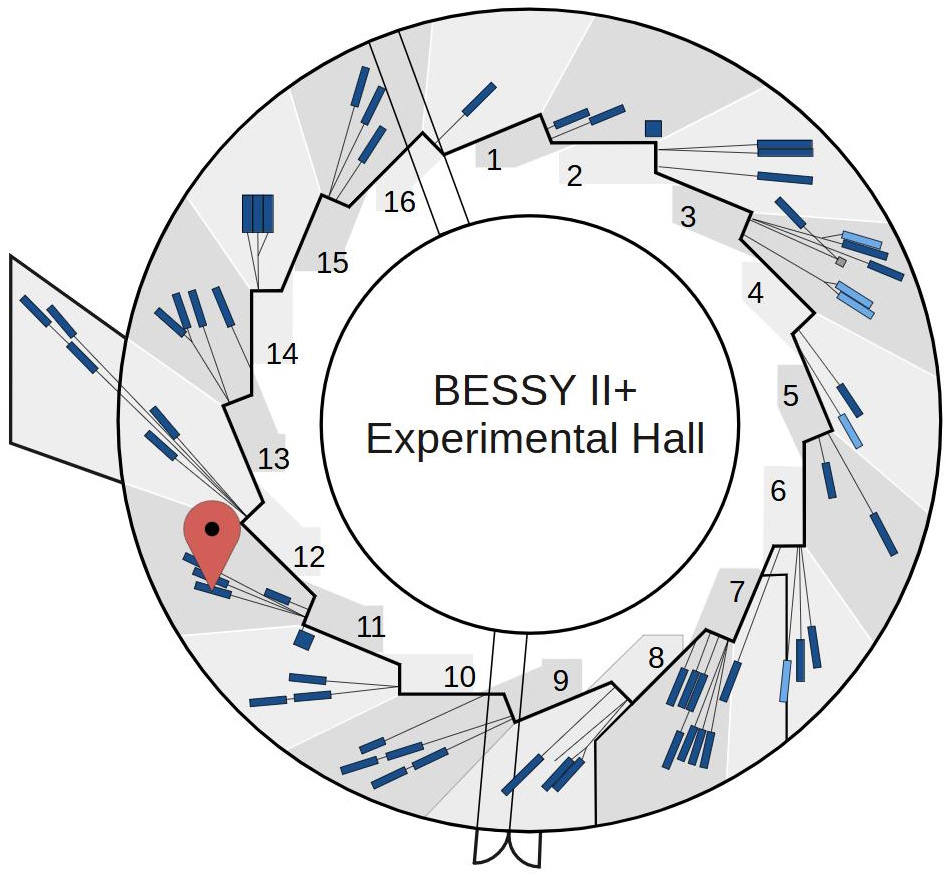

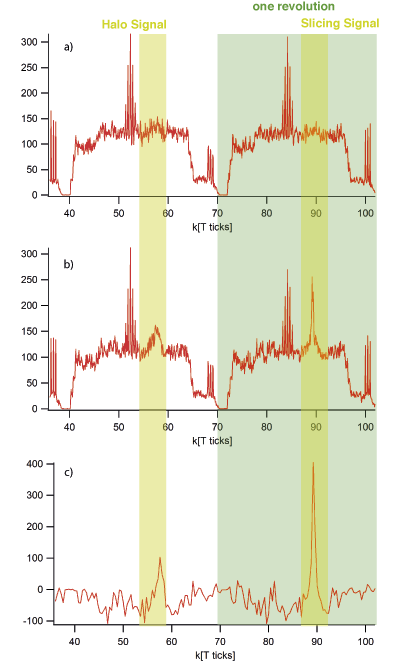

The instrument FEMTOSPEX Surface Dynamics is part of FemtoSpeX which allows to perform angle- and time-resolved photoelectron spectroscopy using the slicing facility. The acceptance angle of the spectrometer is max. 60 °. The time resolution is given by the pulse length of the X-ray pulses from BESSY II. One can also do picosecond measurements using the high resolution (1200l/mm) grating. An ultrafast laser system with OPA (optical parametric amplifier) allows for excitation of the sample at various wavelengths.
The pump laser system can run at up to 6kHz with about 1.2mJ per pulse (800nm) but can also be used at reduced repetition rates of 3kHz and 1.5kHz. The system delivers 800nm laser pulses of about 100fs length with a power of up to ~10W. For 800nm and the 2nd harmonic, i.e. 400nm, variabel attentuation and polarisation are available. For the tunable wavlengths created by the OPA we can currently only offer fixed attenuations by using ND filters.
Selected Applications:- Core-hole-clock (CHC) Spectroscopy
- time-resolved Photo Electron Spectroscopy
- Photo Electron Diffraction
Methods
Time-resolved PES, Time-resolved absorption
Remote access
not possible
| Instrument data | |
|---|---|
| Phone (~49 30 8062-) | 17980, 17981, 17982 |
| Beam availability | 24h/d |
| Source | UE56-1 (Elliptical Undulator) |
| Monochromator | PGM |
| Energy range (at experiment) | tbd |
| Energy resolution | > 100,000 at 64 eV, > 20,000 at 400 eV |
| Flux | 2.5·1011 |
| Polarisation | • linear horizontal vertical • circular |
| Focus size (hor. x vert.) | 85 µm (hor) x 15 µm (vert, dep. on exit slit) |
| Temperature range | 20 - 400 K |
| Pressure range | 6 x 11-10 mbar up to 1 x 10-6 mbar |
| Detector | VG Scienta ARTOF EW 60° lens. |
| Manipulators | 5 axis manipulator |
| Sample holder compatibility | Omicron flag style sample holders |
| Additional equipment | 2 sputter guns, Auger-LEED system, Gas Dosing system, Electron bombardement and filament heating |
| Additional information | Further details: beamline UE56_1-PGM |
Time resolved electronspectroscopy on solid surfaces with femtosecond and picosecond laser-pump/X-ray-probe ArTOF spectroscopy and method development.
