User station@PM3
Open port dipole beamline (soft X-ray, variable polarisation)

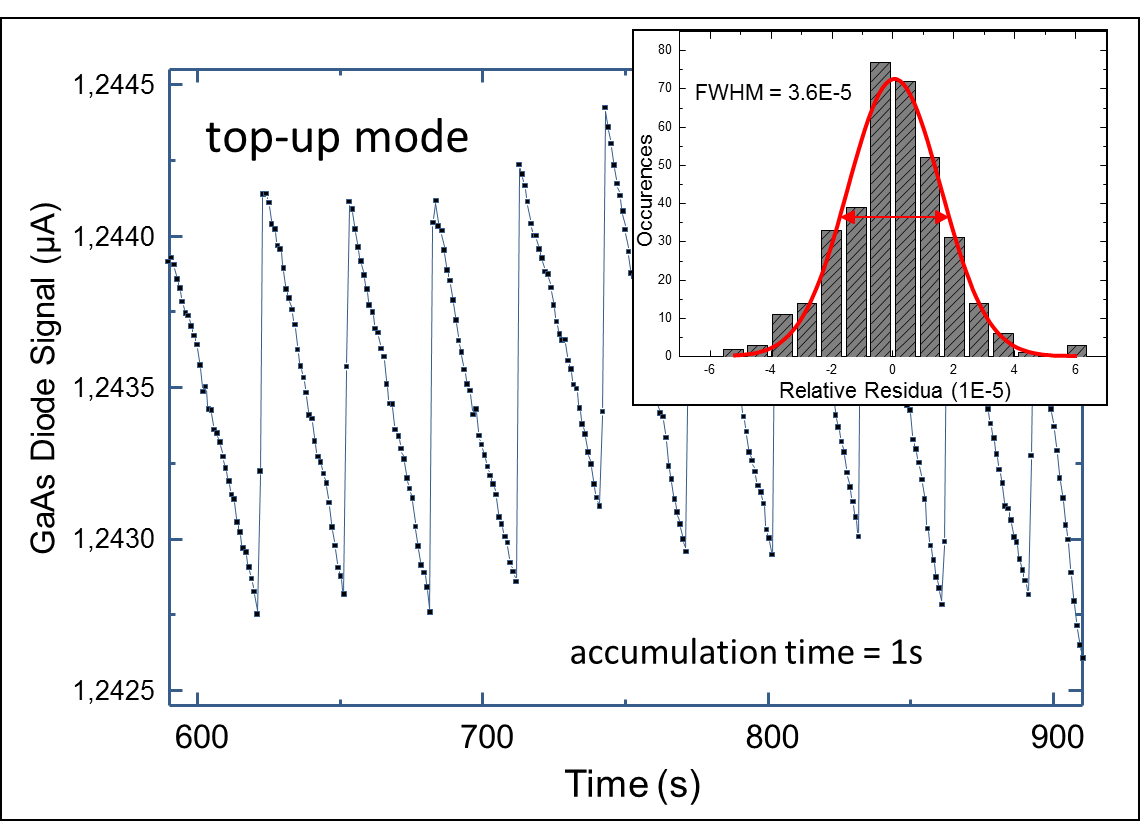

PM3 merges the developments of the former BESSY I SX700 III monochromator for elliptically polarized VUV radiation and of BESSY II collimated plane grating monochromators. This way it is possible to achieve circular polarization from a BESSY II dipole in the range 20 – 2000 eV with high photon flux, high energy resolution and high stability.
The beamline is available as open port to host user stations.
Please contact the instrument scientist(s) before applying for beamtime.
Methods
Remote access
not possible
| Instrument data | |
|---|---|
| Phone (~49 30 8062-) | 13429 |
| Beam availability | 24h/d |

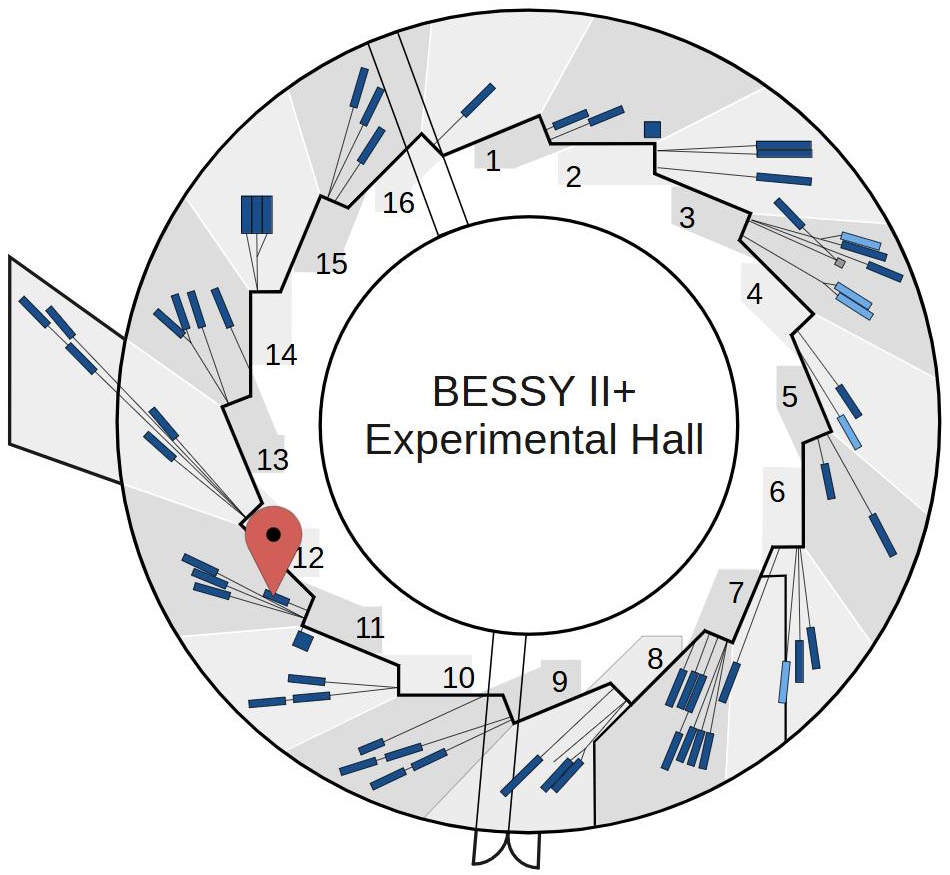

| Source | D111 (Dipole) |

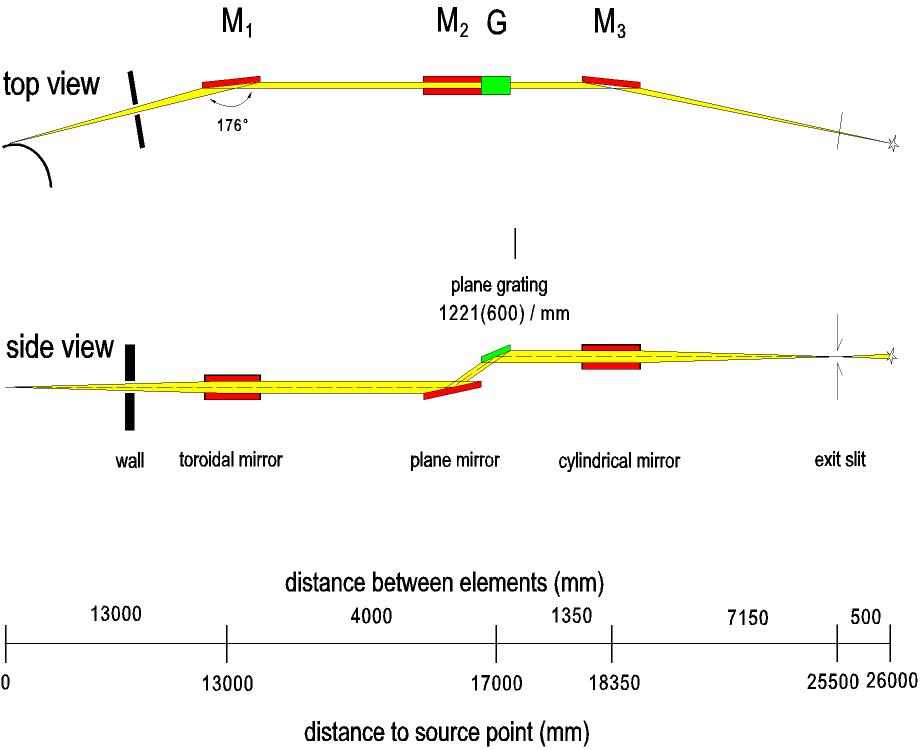

| Monochromator | PM3 |
| Energy range (at experiment) | 20 - 1900 eV |
| Energy resolution | 32000 at 64 eV |

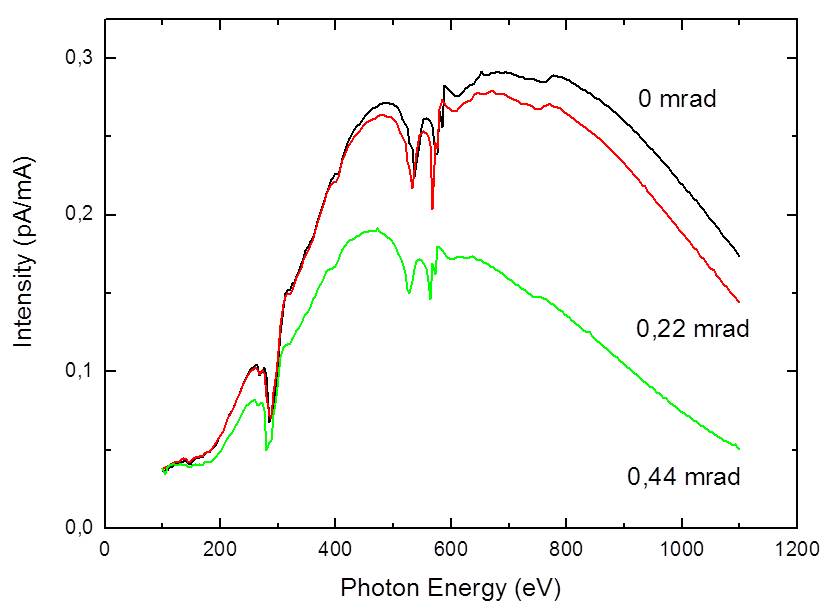

| Flux | 1e9 - 1e10 |

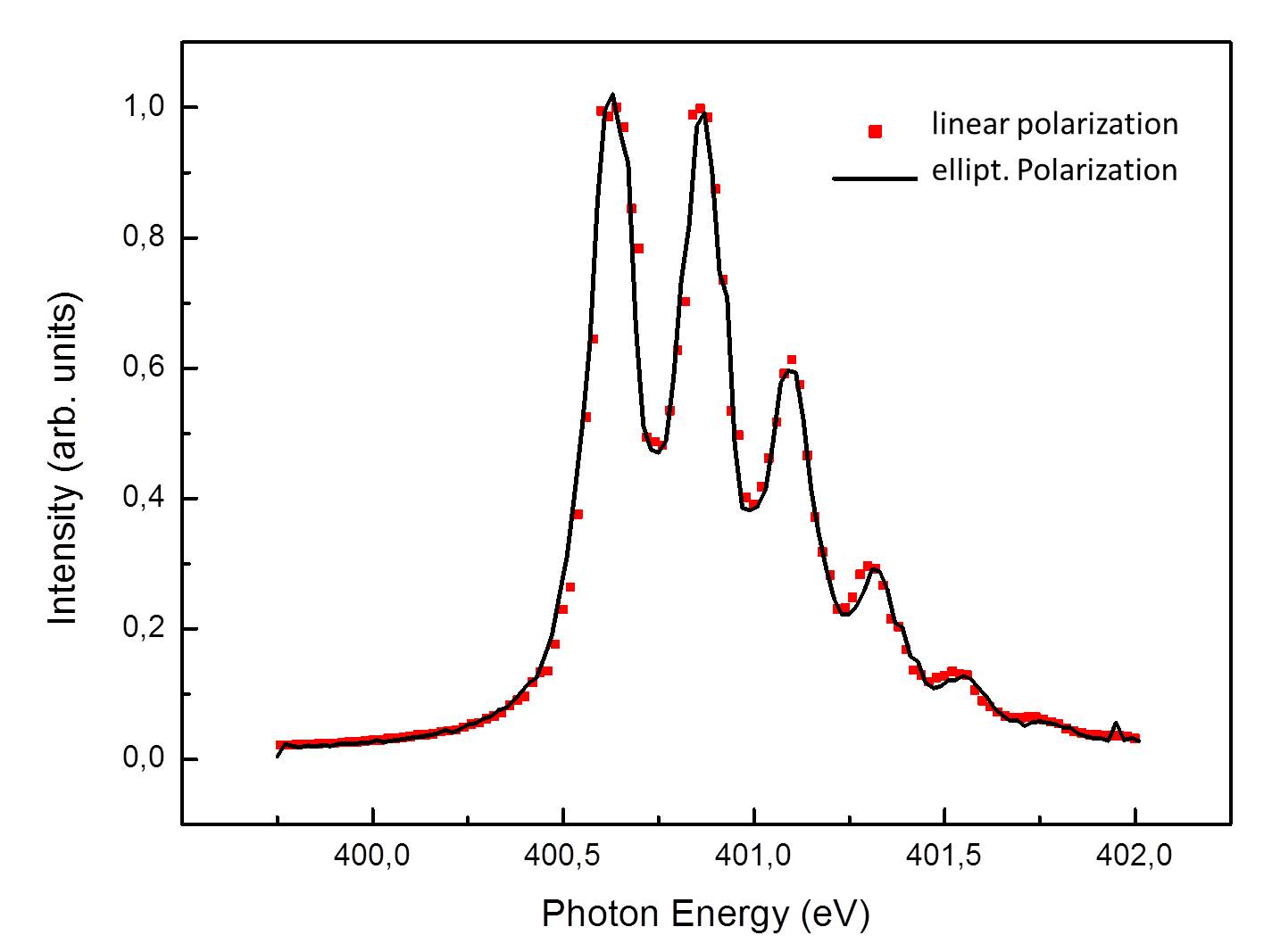

| Polarisation | • horizontal • circular |
| Focus size (hor. x vert.) | 180 µm hor., vert. depends on exit slit |
| Temperature range | depending on user station |
| Pressure range | depending on user station |
| Detector | depending on user station |
| Manipulators | depending on user station |
| Sample holder compatibility | depending on user station |
| Additional equipment | depending on user station |
| Additional information | Details beamline PM3 |
