BLiX spectrometer

Instrument data

BLiX spectrometer

Source

Mo microfocus X-ray tube, 50 V, 600 µA

Detectors

SDD

Optics

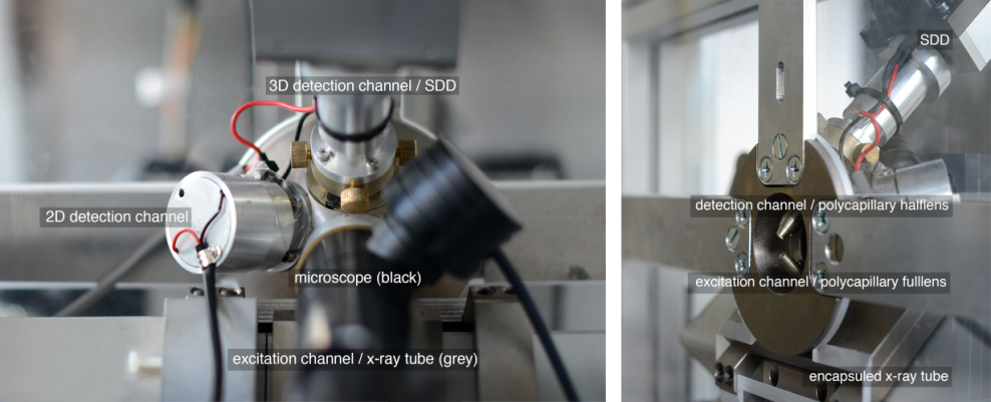

Polycapillary full lens for excitation, polycapillary half lens attached to one detector

Optical microscope

1.5x to 20x magnification

Experimental parameters



Energy range

2 keV – 30 keV (0.5 keV – 50 keV)

Lateral spot size

22 µm @ Fe K fluorescence

Depth resolution

24 µm @ Cu K fluorescence

Maximal sample size

500 x 500 x 950 mm³

Maximal scan range

250 x 250 x 100 mm³

Environment

air

Stage modus

step-by-step
