Transmission electron mircoscopy

The two transmission electron allow a broad range of methods of high-resolution investigation, including scanning transmission electron microscope (STEM), electron energy loss spectroscopy (EELS), energy filtered transmission electron microscopy (EFTEM), energy dispersive X-ray spectroscopy (EDX) and tomography.

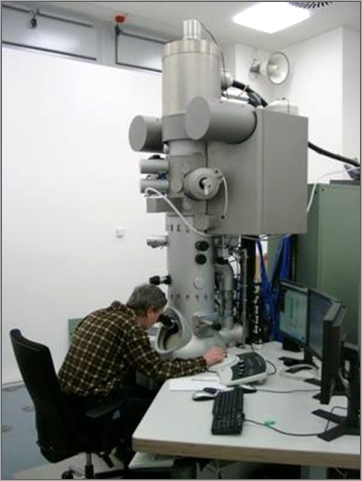

 TEM Zeiss LIBRA 200FE (LMC)

  • TEM/STEM units
  • energy filter for EELS/EFTEM
  • EDX system by Thermo Fisher
  • 2k x 2k slow scan CCD camera by Gatan
  • analytical double-tilt holder
  • tomography holder (+/- 70 degrees)
  • Transfer system for air sensitive samples

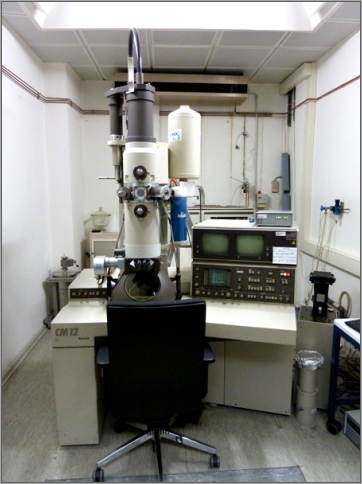

TEM Philips CM 12 (LMC)

  • TEM/STEM units
  • 2k x 2k CCD camera
  • EDX system by AMETEK/EDAX
