SAXS LR020
Kleinwinkel-Röntgendiffraktion
Anwendungsbeispiele:- Nanopartikel, Polymere, Kolloide
- Energiematerialien: Heterogene Katalyse, Perovskite, poröse kohlenstoffhaltige Materialien
- in-situ / -operando Aanalyse von Materialien für Energieumwandlung und -speicherung

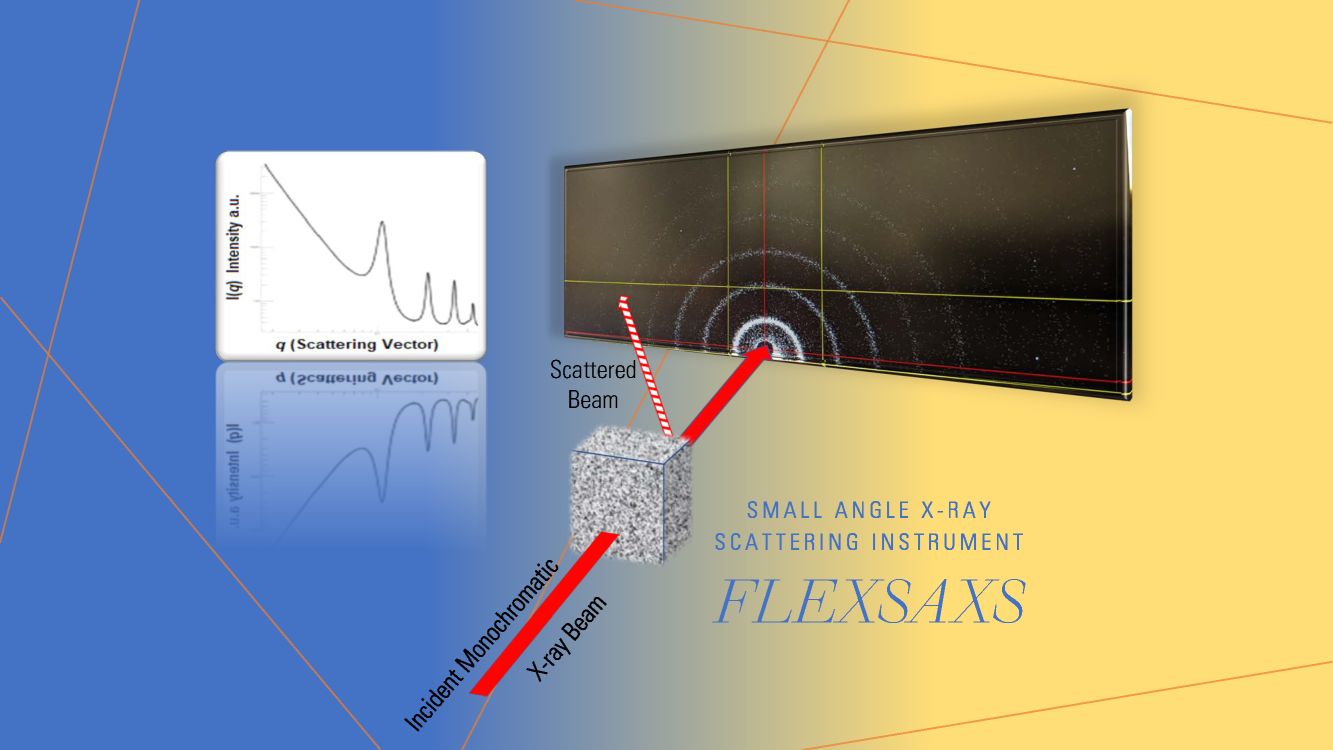

Instrument-Beschreibung

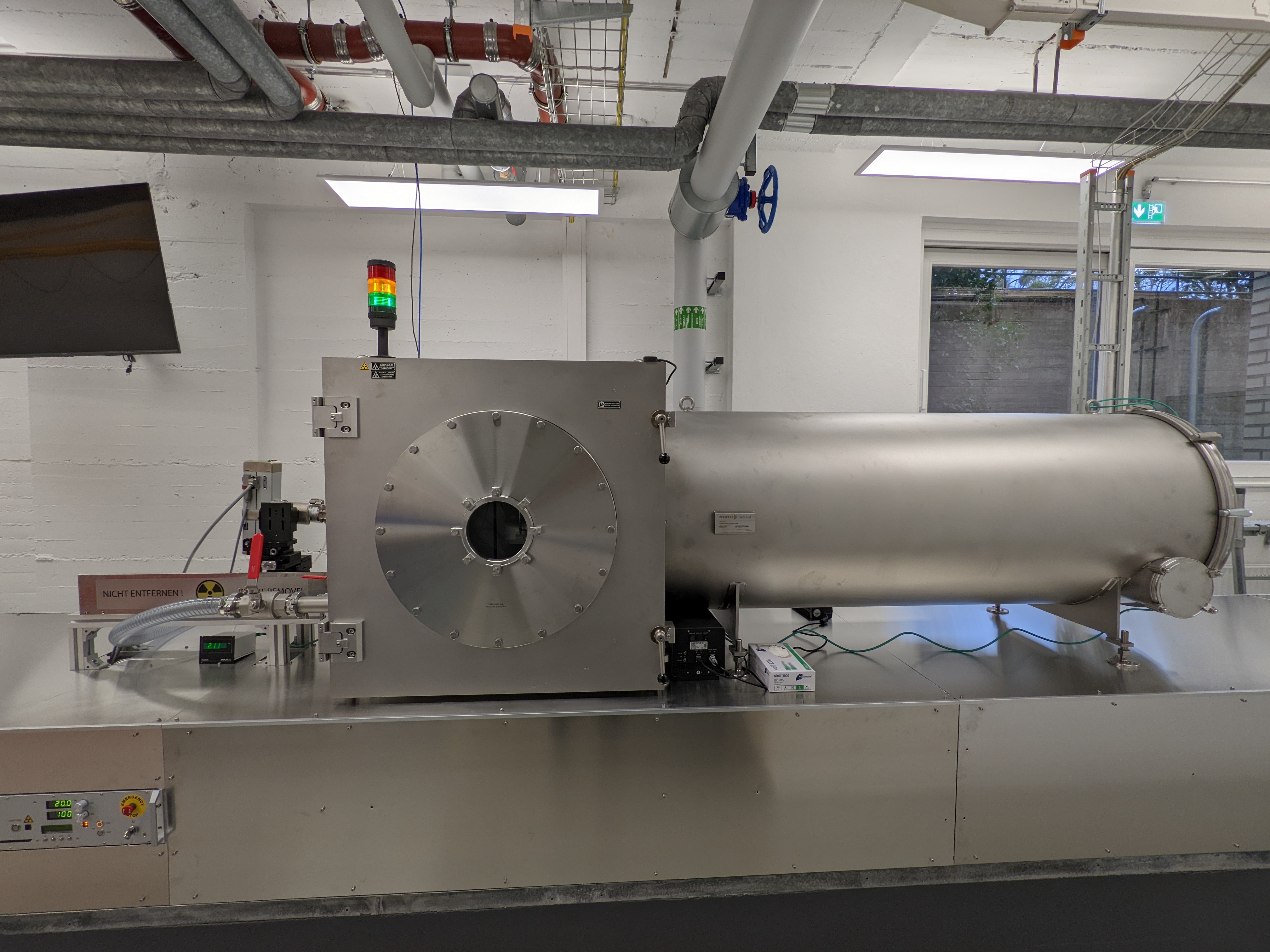

Flex-SAXS
Flex-SAXS

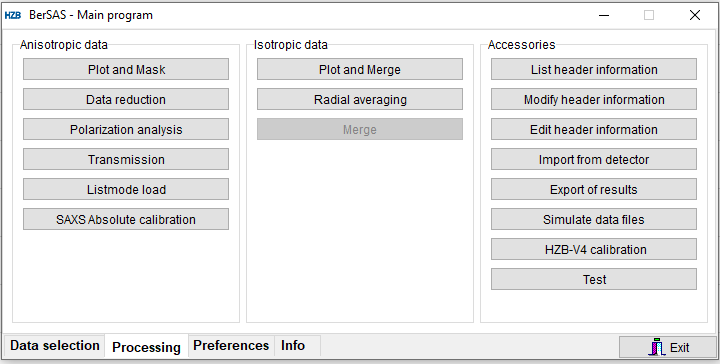

BerSAS
Daten des Instruments | |
---|---|
Röntgenquelle und Optik | IμS HIGHBRILLIANCE Cu Microfocus X-ray source |
Fluss | Photon flux >5*10^8 |
Germaniumblende | Ge600 450μm |
Detektor | DECTRIS PILATUS3 100K-M |
Achsen | Jenaer Antriebstechnik THK Achsen; Sample holder with movement 160mm perpendicular to the beam direction in y and 200mm in x direction. |

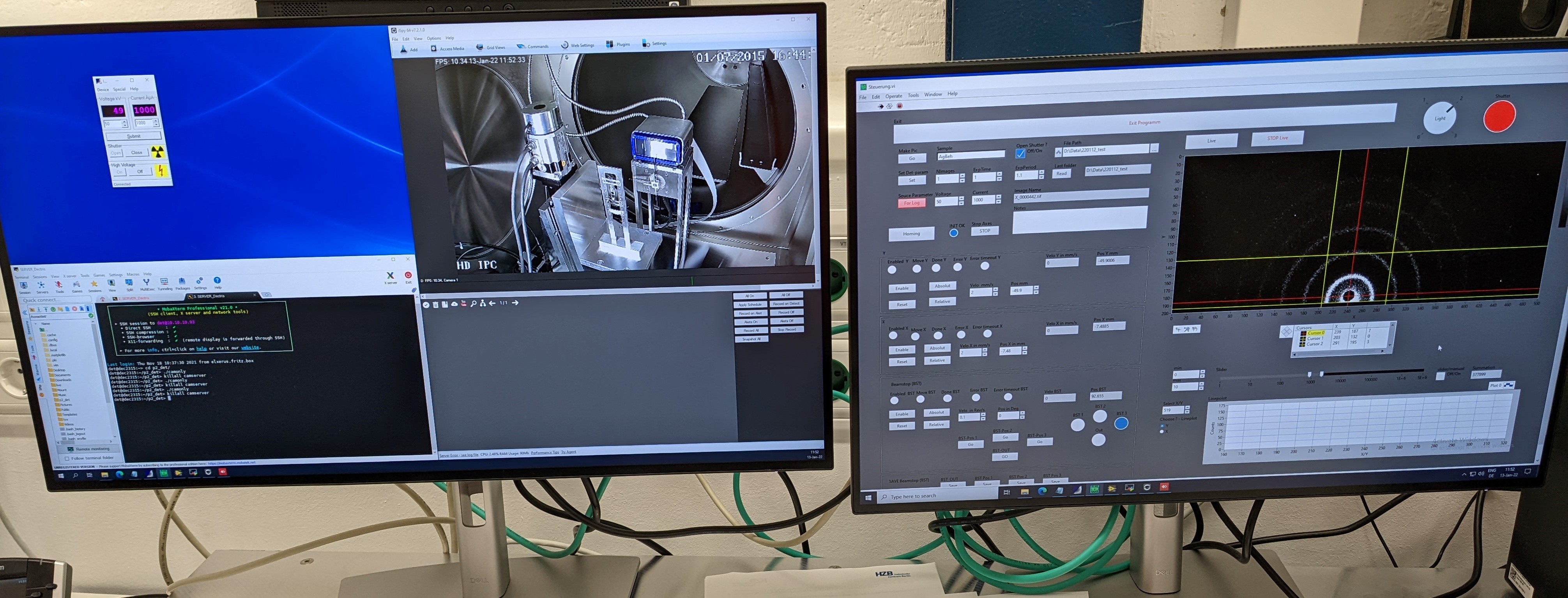

Steuerungssoftware | LabView with Python |
Q Skala | 0.02 < Q < 0.7 Å^-1 |
Probenhalter | Holder for solid samples and for 5 capillaries (liquid samples) |
Beamstops | In three different sizes |
Software zur Datenreduzierung | The "BerSAS" data reduction software package has been developed by Dr. Uwe Keiderling, and is constantly being expanded to offer new options and data treatment tools. It contains a set of programs for automated two-dimensional and one-dimensional reduction of large amounts of data files, and a set of graphical tools for data analysis, documentation, and publication. |
Probenkammer | Vacuum up to 0.02 mbar |
